Product CatalogPart Number
G5NB-1A4-E DC24
Manufacturer
Omron Electronics Inc-EMC DivDescription
RELAY GEN PURPOSE SPST 5A 24V
Datasheet
DatasheetPackage
-
In Stock
87,815 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
G5NB-1A4-E DC24
G5NB-1A4-E DC24
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Quick Inquiry
G5NB-1A4-E DC24
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G5NB |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Load - Max Switching | 1250VA, 150W |
| Coil Current | 8.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | - |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.88 kOhms |
| Base Product Number | G5NB-1A |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

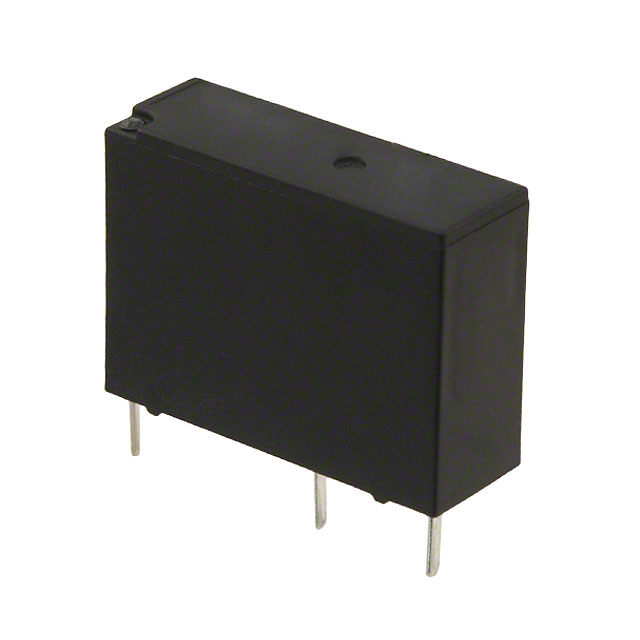

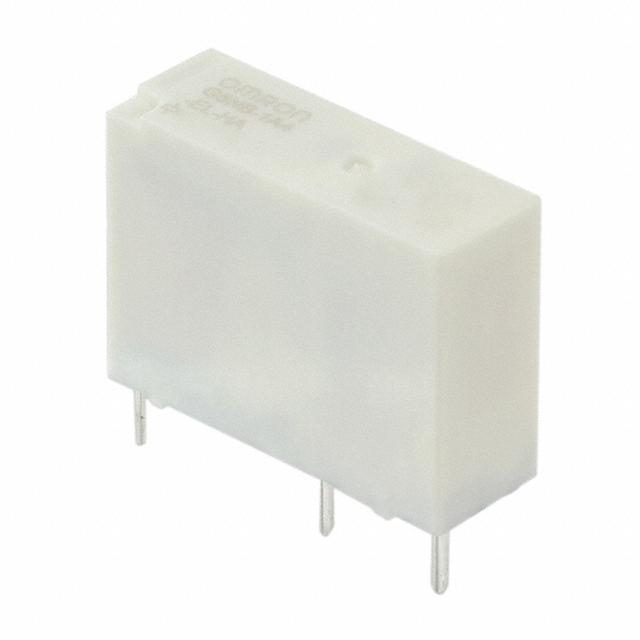

| Part Number | G5NB-1A4-E DC5 | G5NB-1A4-CB DC12 (N)(A) | G5NB-1A4-E-DC12 | G5NB-1A4-EL-HA DC12 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY GEN PURPOSE SPST 5A 5V | RELAY GEN PURPOSE SPST 3A 12V | RELAY GEN PURPOSE SPST 5A 12V | RELAY GEN PURPOSE SPST 7A 12V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products

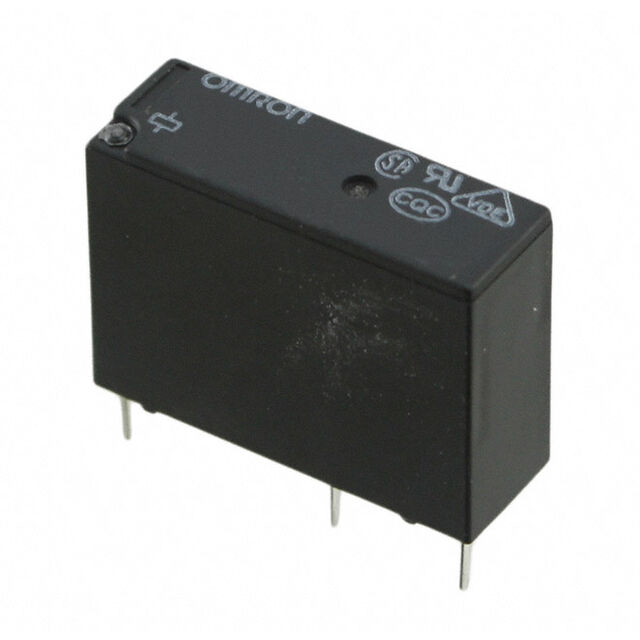

G5NB-1A DC12
Omron Electronics Inc-EMC Div
G5NB-1A DC18
Omron Electronics Inc-EMC Div
G5NB-1A DC24
Omron Electronics Inc-EMC Div
G5NB-1A DC5
Omron Electronics Inc-EMC Div
G5NB-1A DC9
Omron Electronics Inc-EMC Div
G5NB-1A-DC24-(N)-(A)
Omron Electronics Inc-EMC Div
G5NB-1A-E DC12
Omron Electronics Inc-EMC Div
G5NB-1A-E DC18
Omron Electronics Inc-EMC Div
G5NB-1A-E DC24
Omron Electronics Inc-EMC Div
G5NB-1A-E DC5
Omron Electronics Inc-EMC Div
G5NB-1A-E DC9
Omron Electronics Inc-EMC Div
(A).jpg "G5NB-1A-E-HA DC12 (N)(A)")
G5NB-1A-E-HA DC12 (N)(A)
Omron Electronics Inc-EMC Div

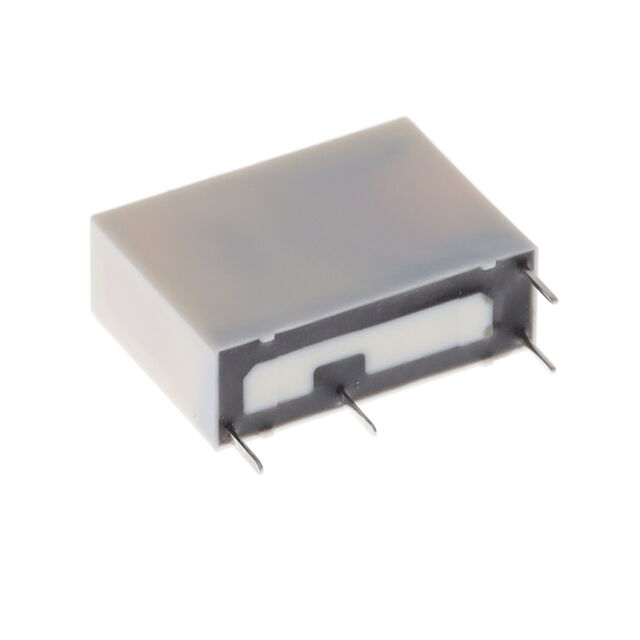

(A).jpg "G5NB-1A-E-HA DC24 (N)(A)")
G5NB-1A-E-HA DC24 (N)(A)
Omron Electronics Inc-EMC Div
G5NB-1A-E-SP DC12
Omron Electronics Inc-EMC Div
G5NB-1A-E-SP DC24
Omron Electronics Inc-EMC Div

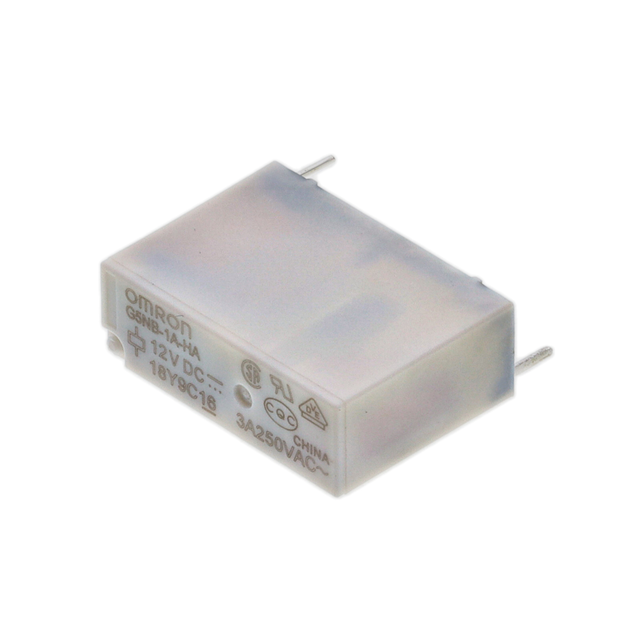

(A).jpg "G5NB-1A-HA DC12 (N)(A)")
G5NB-1A-HA DC12 (N)(A)
Omron Electronics Inc-EMC Div

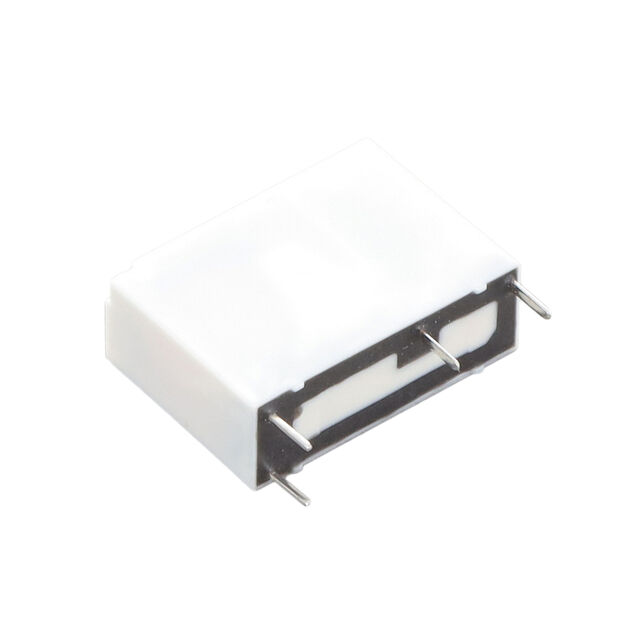

(A).jpg "G5NB-1A-HA DC24 (N)(A)")
G5NB-1A-HA DC24 (N)(A)
Omron Electronics Inc-EMC Div

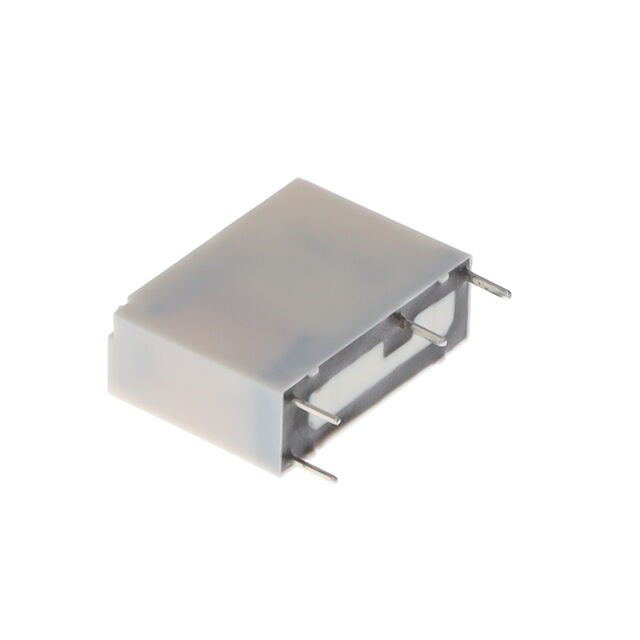

(A).jpg "G5NB-1A-HA DC5 (N)(A)")
