G825M08401YEU
lmages are for reference only.G825M08401YEU
PIN HEADER 2.0MM PITCH STR,SMT,2
Datasheet-
44,247 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Surface Mount 8 position 0.079" (2.00mm)
G825M08401YEU
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | G825 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.079" (2.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Pick and Place |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 250VDC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | Flash |
| Applications | - |
| Base Product Number | G825M08 |
| Product Attribute |  |
 |
 |
|

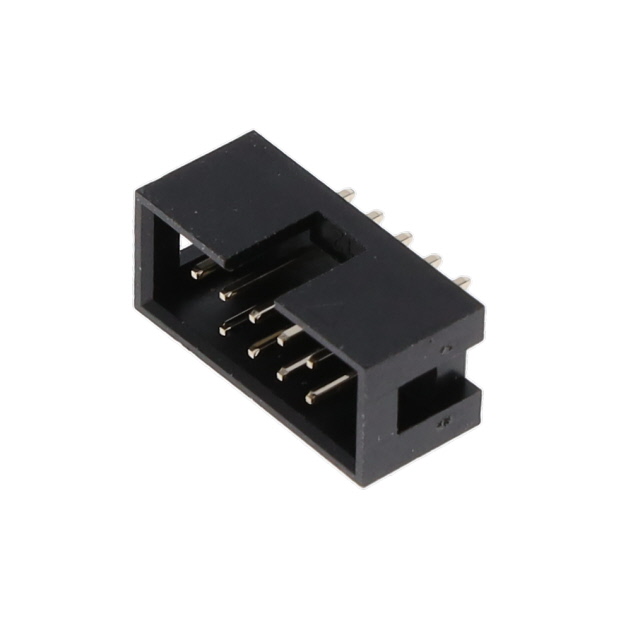

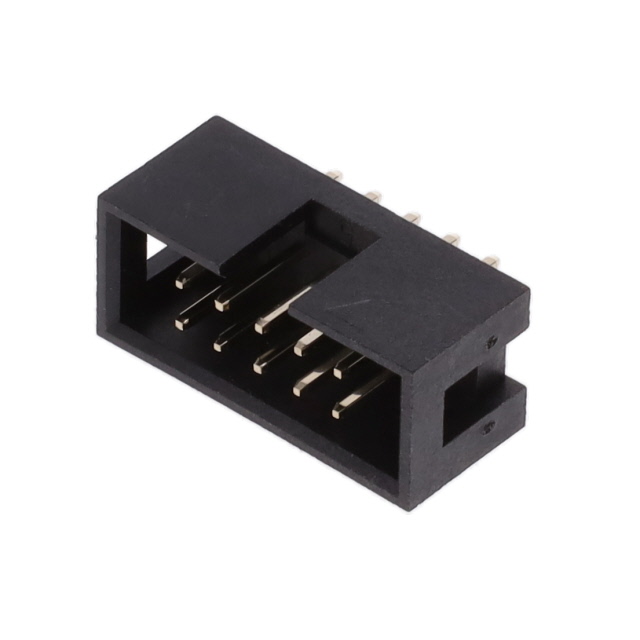

| Part Number | G821EU210AAL10Y | G821EU210AGM00Y | G8230614YBTHR | G8231010KBEU |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | BOX HEADER 2.54MM*2.54MM PITCH S | BOX HEADER 2.54MM*2.54MM PITCH S | BOX HEADER 2.0MM PITCH STR DIP,2 | BOX HEADER 2.0MM PITCH STR DIP,2 |
| Series | G821 | G821 | G823 | G823 |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
