G8P1A2TFDC5BYOMZ

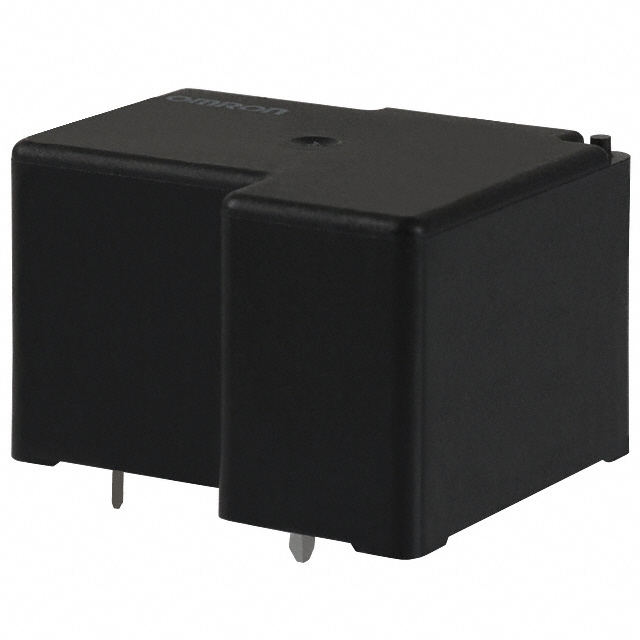

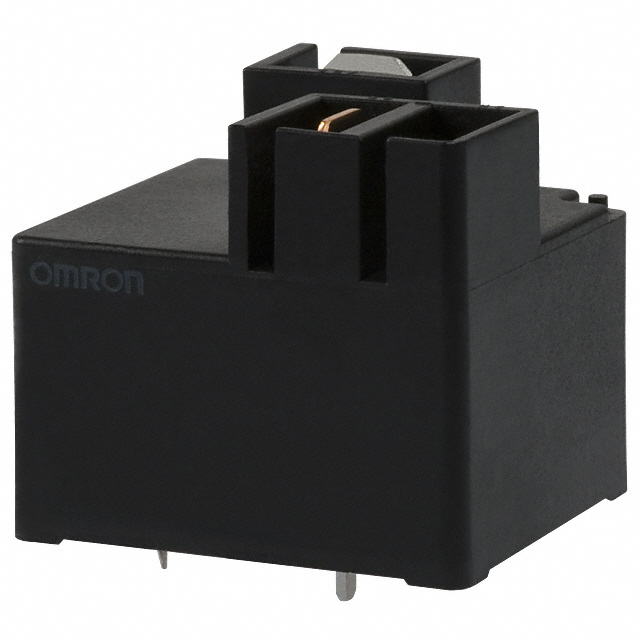

lmages are for reference only.G8P1A2TFDC5BYOMZ
RELAY GEN PURPOSE SPST 30A 5V
Datasheet-
27,748 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Chassis Mount
G8P1A2TFDC5BYOMZ
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G8P |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 250VAC, 28VDC - Max |
| Load - Max Switching | 7500VA, 840W |
| Coil Current | 185 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 105°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 27 Ohms |
| Base Product Number | G8P-1A |
| Product Attribute |  |
 |
 |
 |
| Part Number | G5NB-1A4-E DC24 | G6RL-14-ASI DC6 | G2RL-1-E-HA DC12 | G7J-2A2B-B-W1 AC24 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Automation and Safety |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPST 5A 24V | RELAY GEN PURPOSE SPDT 8A 6V | RELAY GEN PURPOSE SPDT 16A 12V | RELAY GEN PURPOSE 4PST 25A 24V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Automation and Safety |
| Packaging | Tray | Bulk | Tube | Bulk |
