GSB3116342HR

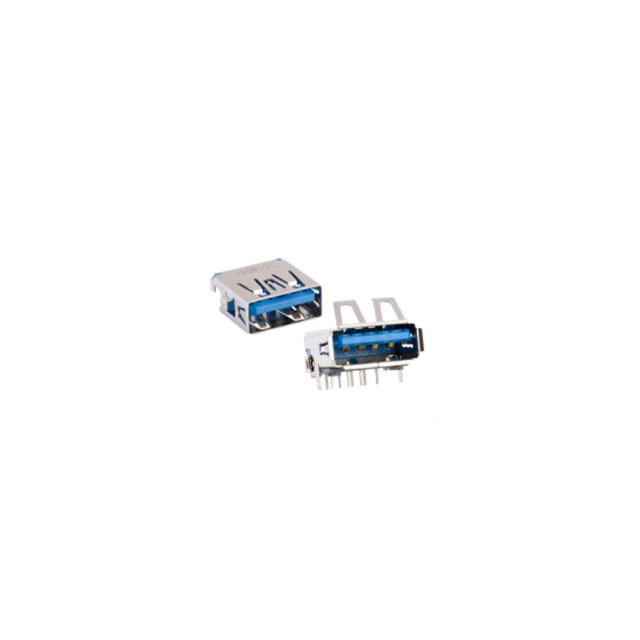

lmages are for reference only.GSB3116342HR
USB3.0, A, RECEPTACLE, UPRIGHT D
Datasheet-
93,205 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Panel Mount, Through Hole, Right Angle
GSB3116342HR
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | USB-A (USB TYPE-A) |
| Number of Contacts | 9 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Vertical |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1.8A |
| Voltage - Rated | 30VDC |
| Mating Cycles | 5000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Base Product Number | GSB3116 |
| Product Attribute |  |
 |
 |
 |
| Part Number | GSB3116341HR | GSB3116342DHR | GSB3116344HR | GSB3116344KHHR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | USB3.0, A, RECEPTACLE, UPRIGHT D | USB3.0, A, RECEPTACLE, UPRIGHT D | USB3.0, A, RECEPTACLE, UPRIGHT D | USB3.0, A, RECEPTACLE, UPRIGHT D |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
