GSFU60R360
lmages are for reference only.GSFU60R360
MOSFET, N-CH, SINGLE, 11.00A, 60
DatasheetTO-220-3 Full Pack
16,239 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 11A (Tc) 40W (Tc) Through Hole TO-220F
GSFU60R360
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 925 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

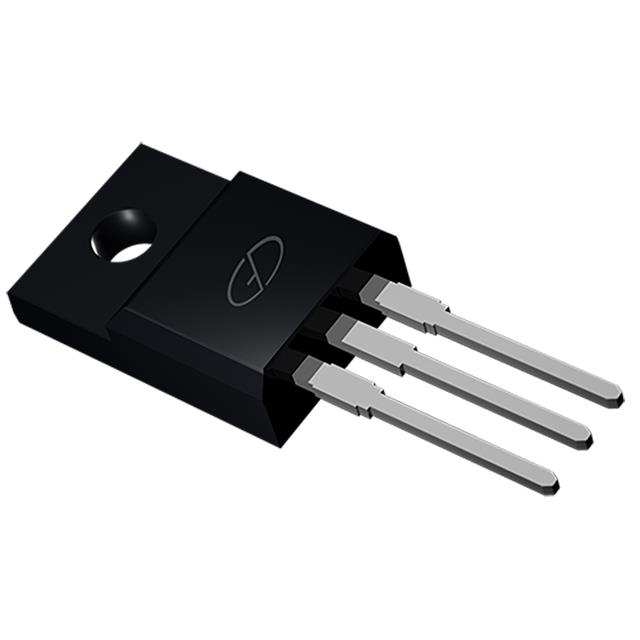

| Part Number | GSFU60R190 | GSFU2016 | GSFU250N06 | GSFU2580 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET, N-CH, SINGLE, 20.00A, 60 | MOSFET, N-CH, SINGLE, 18.00A, 20 | MOSFET, N-CH, SINGLE, 64A, 60V, | MOSFET, N-CH, SINGLE, 80.00A, 25 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
