GSFU65RF110

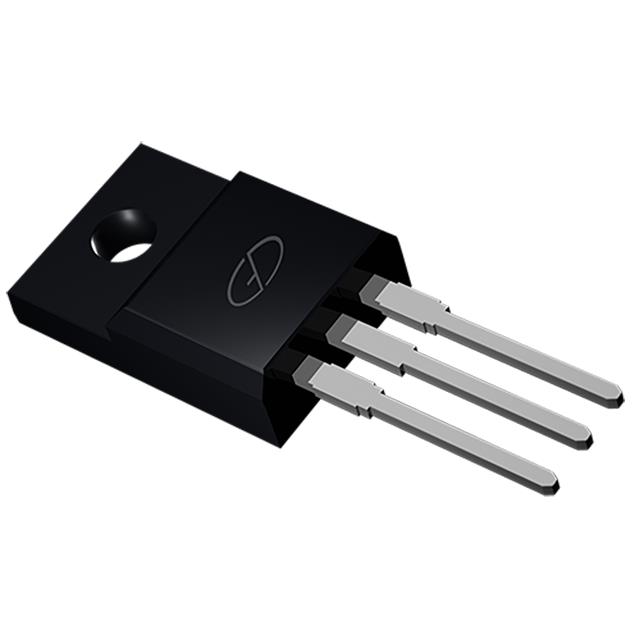

lmages are for reference only.GSFU65RF110
MOSFET, N-CH, SINGLE, 35.00A, 65
DatasheetTO-220-3 Full Pack
21,388 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 35A (Tc) 26W (Tc) Through Hole TO-220F
GSFU65RF110
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 4.9V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3011 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 26W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 81 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | GSFU6008 | GSFU60R190 | GSFU60R360 | GSFU6504 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET, N-CH, SINGLE, 7.00A, 600 | MOSFET, N-CH, SINGLE, 20.00A, 60 | MOSFET, N-CH, SINGLE, 11.00A, 60 | MOSFET, N-CH, SINGLE, 4.00A, 650 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
