IGBT 1200 V 40 A 230 W Through Hole TO-3P(N)
GT40QR21(STA1,E,D
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 40A |
| Power - Max | 230 W |
| Switching Energy | -, 290µJ (off) |
| Input Type | Standard |
| Gate Charge | - |
| Td (on/off) @ 25°C | - |
| Test Condition | 280V, 40A, 10Ohm, 20V |
| Operating Temperature | 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P(N) |
| Reverse Recovery Time (trr) | 600 ns |
| Base Product Number | GT40QR21 |
| Product Attribute | .jpg "GT10G131(TE12L,Q)") |
.jpg "GT10J312(Q)") |
 |
 |

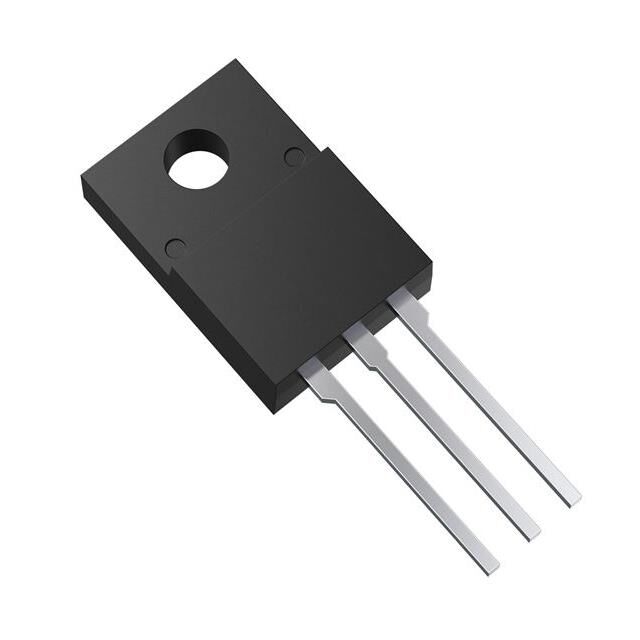

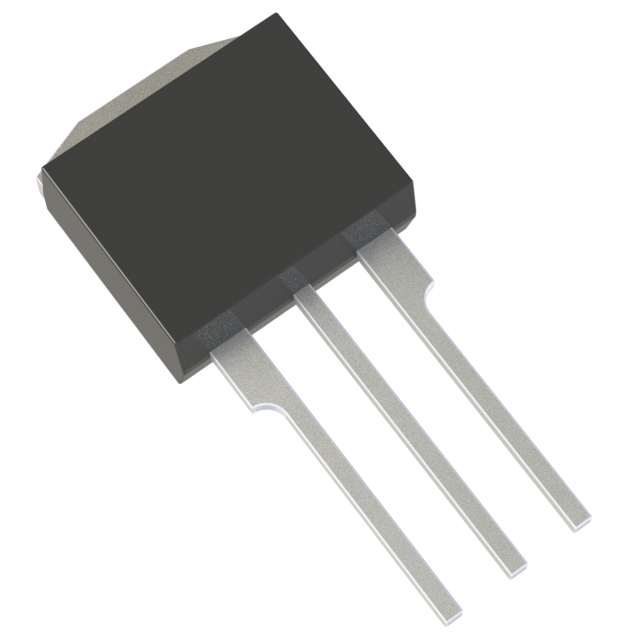

| Part Number | GT10G131(TE12L,Q) | GT10J312(Q) | GT15J341,S4X | GT20J341,S4X(S |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IGBT 400V 1W 8-SOIC | IGBT 600V 10A 60W TO220SM | IGBT 600V 15A TO220SIS | DISCRETE IGBT TRANSISTOR TO-220S |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube |
