HMC593LP3E
lmages are for reference only.HMC593LP3E
IC AMP WIMAX 3.3GHZ-3.8GHZ 16QFN
Datasheet16-VFQFN Exposed Pad
90,513 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC WiMAX / WiBro 3.3GHz ~ 3.8GHz 16-QFN (3x3)
HMC593LP3E
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Strip |
| RoHS Status | |
| Frequency | 3.3GHz ~ 3.8GHz |
| P1dB | 16dBm |
| Gain | 19dB |
| Noise Figure | 1.2dB ~ 1.4dB |
| RF Type | WiMAX / WiBro |
| Voltage - Supply | 3V, 5V |
| Current - Supply | 20mA ~ 40mA |
| Test Frequency | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | HMC593 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

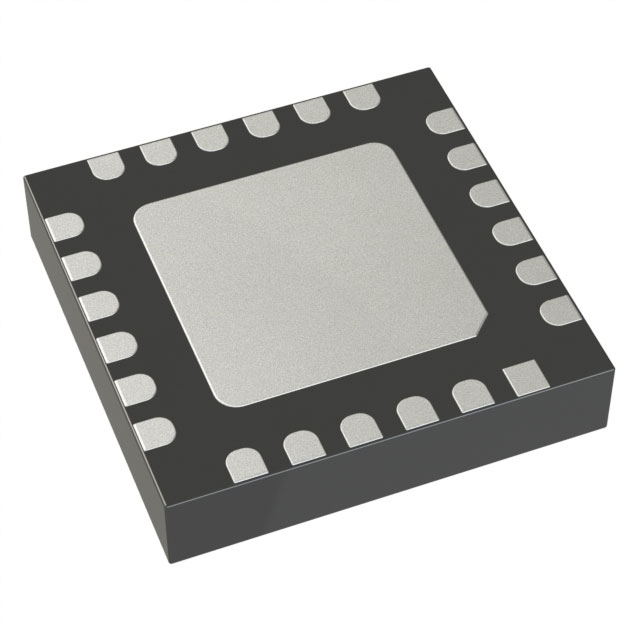

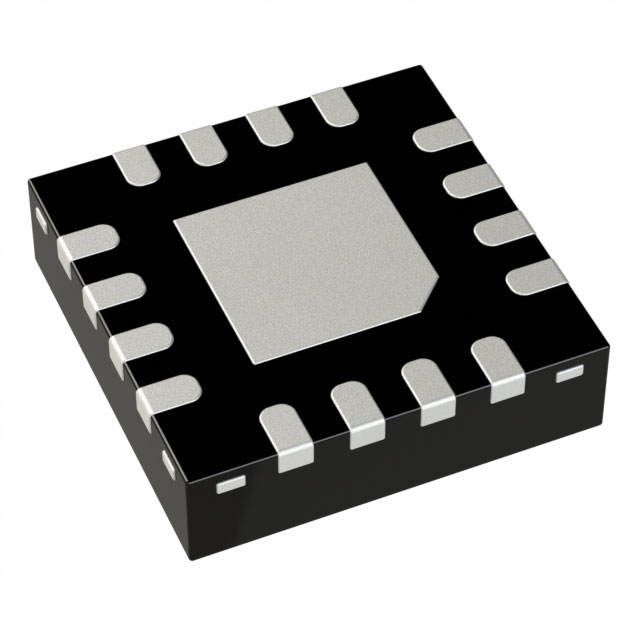

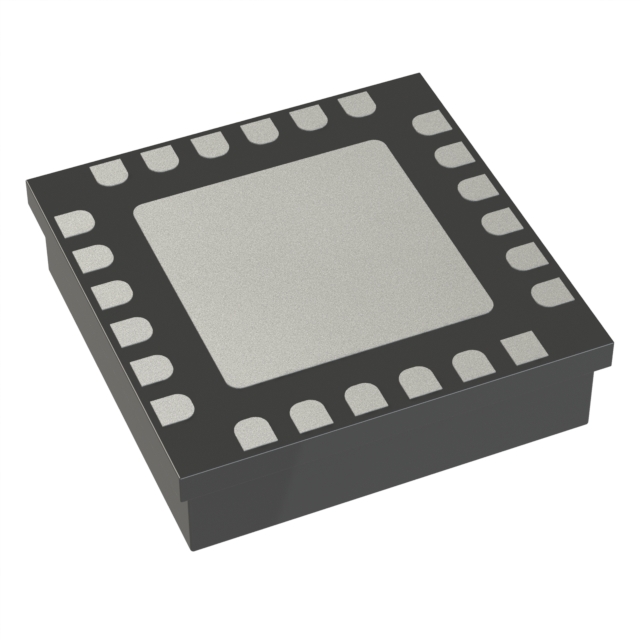

| Part Number | HMC593LP3ETR | HMC504LC4B | HMC504LC4BTR | HMC504LC4BTR-R5 |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC AMP WIMAX 3.3GHZ-3.8GHZ 16QFN | IC RF AMP GPS 14GHZ-27GHZ 24CLCC | IC RF AMP GPS 14GHZ-27GHZ 24QFN | IC RF AMP 14GHZ-27GHZ 24QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
