Product CatalogPart Number
HMS 15-P
Manufacturer
LEM USA Inc.Description
SENSOR CURRENT HALL 15A AC/DC
Datasheet
DatasheetPackage
Module
In Stock
56,578 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HMS 15-P
HMS 15-P
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 15A 1 Channel Hall Effect, Open Loop Bidirectional Module
Quick Inquiry
HMS 15-P
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | HMS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 15A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | - |
| Frequency | DC ~ 50kHz |
| Linearity | ±0.5% |
| Accuracy | ±1% |
| Voltage - Supply | 5V |
| Response Time | 5µs |
| Current - Supply (Max) | 19mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

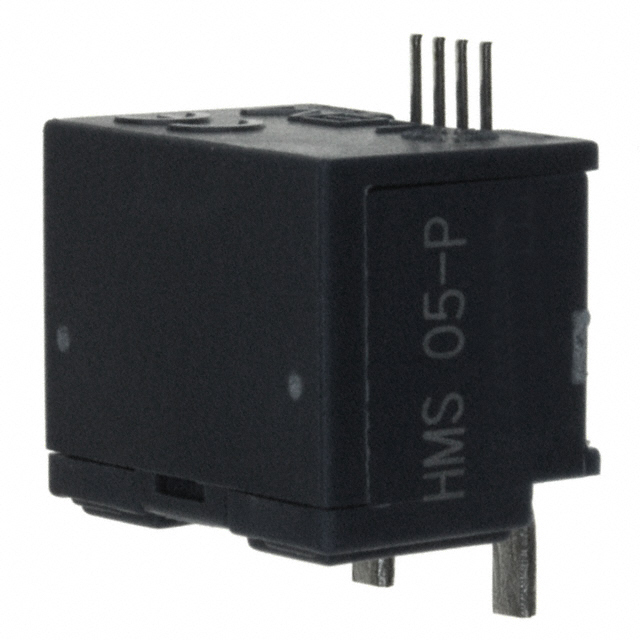

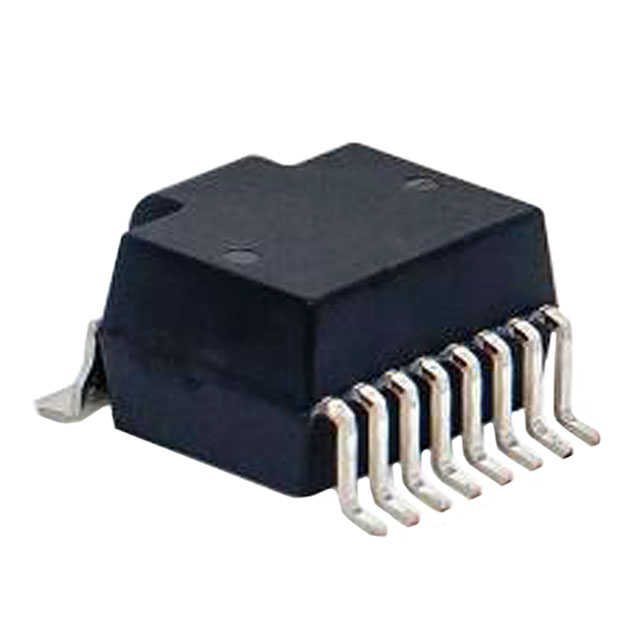

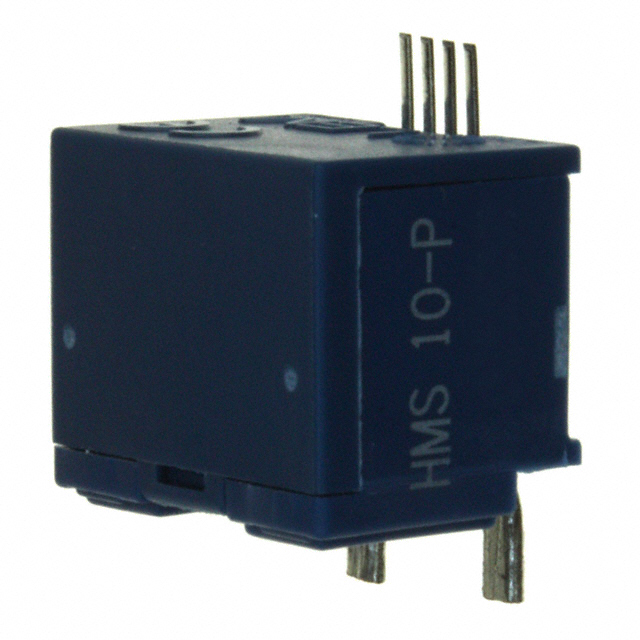

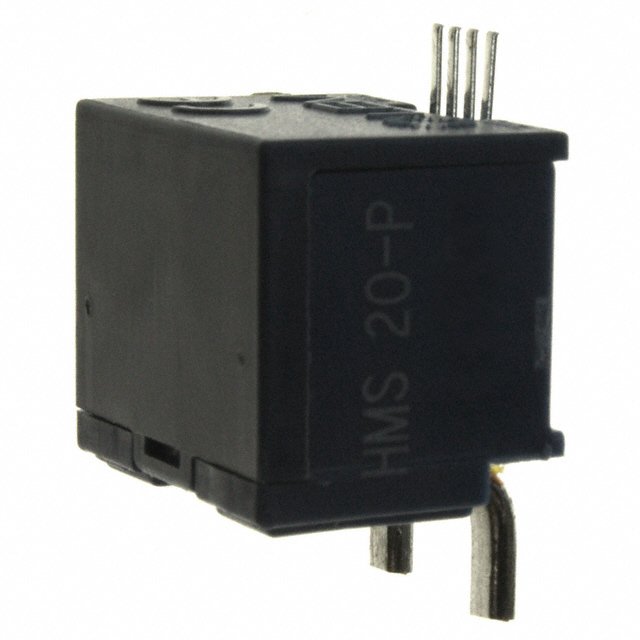

| Part Number | HMS 10-P | HMS 20-P | HMS 05-P | HMSR 20-SMS |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT HALL 10A AC/DC | SENSOR CURRENT HALL 20A AC/DC | SENSOR CURRENT HALL 5A AC/DC | SURFACT MT, 20A SENSOR WITH HIGH |
| Series | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. | LEM USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
