HN1B04FU-Y(T5L,F,T
lmages are for reference only.HN1B04FU-Y(T5L,F,T
TRANS NPN/PNP 50V 150MA US6
Datasheet6-TSSOP, SC-88, SOT-363
79,950 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 50V 150mA 150MHz 200mW Surface Mount US6
HN1B04FU-Y(T5L,F,T
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Transistor Type | 1 NPN, 1 PNP |
| Current - Collector (Ic) (Max) | 150mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 2mA, 6V |
| Power - Max | 200mW |
| Frequency - Transition | 150MHz |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | US6 |
| Base Product Number | HN1B04 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HN1B04FU-GR,LF | HN1B04FU-GR,LXHF | HN1B04FU-Y,LF | HN1B04FU-Y,LXHF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TRANS NPN/PNP 50V 150MA US6 | TRANS NPN/PNP 50V 150MA US6 | TRANS NPN/PNP 50V 150MA US6 | TRANS NPN/PNP 50V 150MA US6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

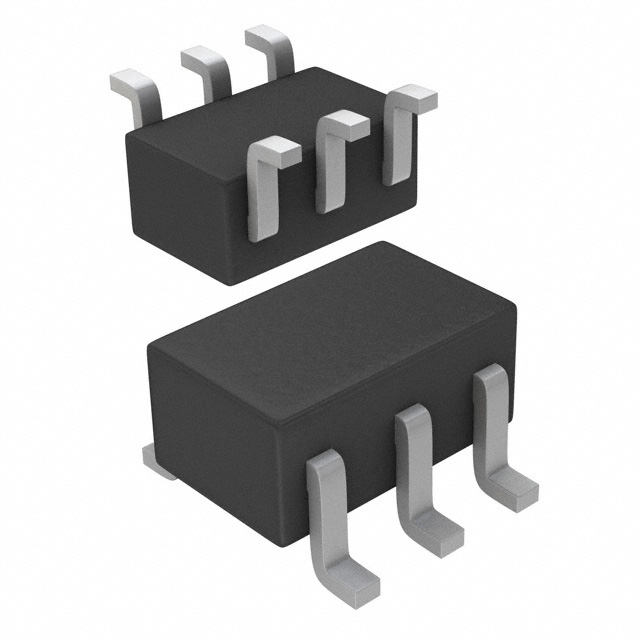

.jpg "HN1B01FU-Y(L,F,T)")
