Product CatalogPart Number
HSMF-C115
Manufacturer
Broadcom LimitedDescription
LED RGB DIFFUSED CHIP SMD R/A
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
49,065 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HSMF-C115
HSMF-C115
lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.4V Green, 3.4V Blue 4-SMD, No Lead
Quick Inquiry
HSMF-C115
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 80mcd Red, 170mcd Green, 60mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.10mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.4V Green, 3.4V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° Red, 125° Green, 125° Blue |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 637nm Red, 523nm Green, 468nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | Chip LED |
| Size / Dimension | 2.50mm L x 1.00mm W |
| Height (Max) | 1.00mm |
| Base Product Number | HSMF-C115 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | HSMF-C112 | HSMF-C113 | HSMF-C114 | HSMF-C116 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CHIP TOP MNT SMD | LED RGB DIFFUSED CHIP SMD R/A | LED RGB DIFFUSED CHIP SMD | LED RGB TOP MNT SMD |
| Series | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
HSMF-A201-A00J1
Broadcom Limited
HSMF-A202-A00J1
Broadcom Limited
HSMF-A203-A00J1
Broadcom Limited
HSMF-A204-A00J1
Broadcom Limited
HSMF-A205-A00J1
Broadcom Limited
HSMF-A206-A00J1
Broadcom Limited
HSMF-A211-A00J1
Broadcom Limited
HSMF-A212-A00J1
Broadcom Limited
HSMF-A222-A00J1
Broadcom Limited
HSMF-A226-A00J1
Broadcom Limited
HSMF-A341-A00J1
Broadcom Limited
HSMF-C112
Broadcom Limited
HSMF-C113
Broadcom Limited
HSMF-C114
Broadcom Limited
HSMF-C116
Broadcom Limited
HSMF-C118
Broadcom Limited
HSMF-C11B
Broadcom Limited

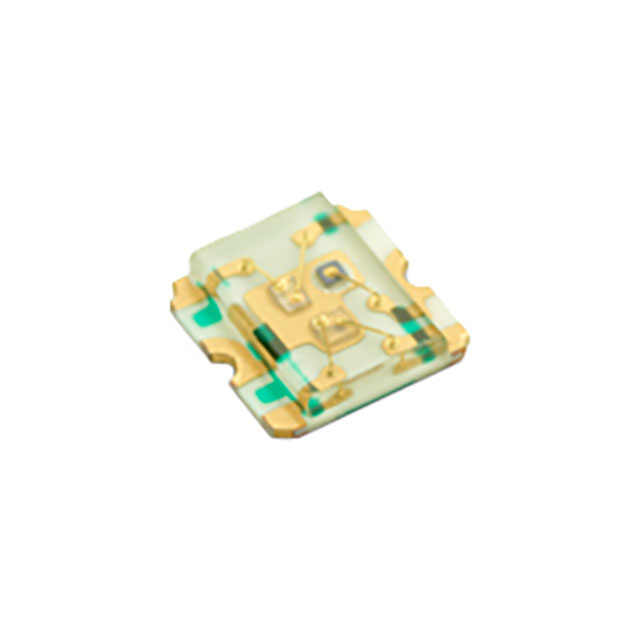

HSMF-C125
