Product CatalogPart Number
HSMF-C125
Manufacturer
Broadcom LimitedDescription
LED RGB CHIP TOP MNT SMD
Datasheet
DatasheetPackage
0606 (1616 Metric)
In Stock
59,304 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HSMF-C125
HSMF-C125

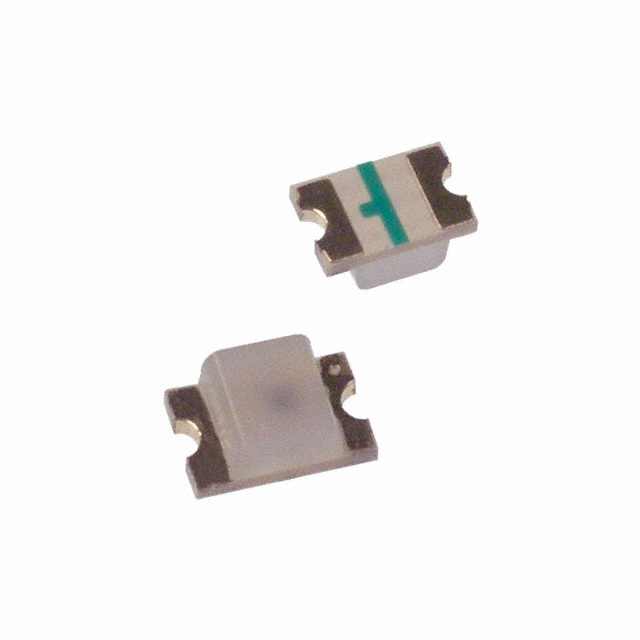

lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 623nm Red, 522nm Green, 467nm Blue LED Indication - Discrete 2.15V Red, 3.415V Green, 3.425V Blue 0606 (1616 Metric)
Quick Inquiry
HSMF-C125
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 1.15mm |
| Voltage - Forward (Vf) (Typ) | 2.15V Red, 3.415V Green, 3.425V Blue |
| Current - Test | 10mA Red, 10mA Green, 10mA Blue |
| Viewing Angle | 130° Red, 150° Green, 150° Blue |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 623nm Red, 522nm Green, 467nm Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 461nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.50mm |
| Base Product Number | HSMF-C125 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | HSMF-C127 | HSMF-C128 | HSMF-C129 | HSMF-C112 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CHIP SMD | LED RGB TOP MNT CHIP SMD | LED RGB TOP MNT 0805 SMD | LED RGB CHIP TOP MNT SMD |
| Series | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
