HV2220Y821JXVATHV

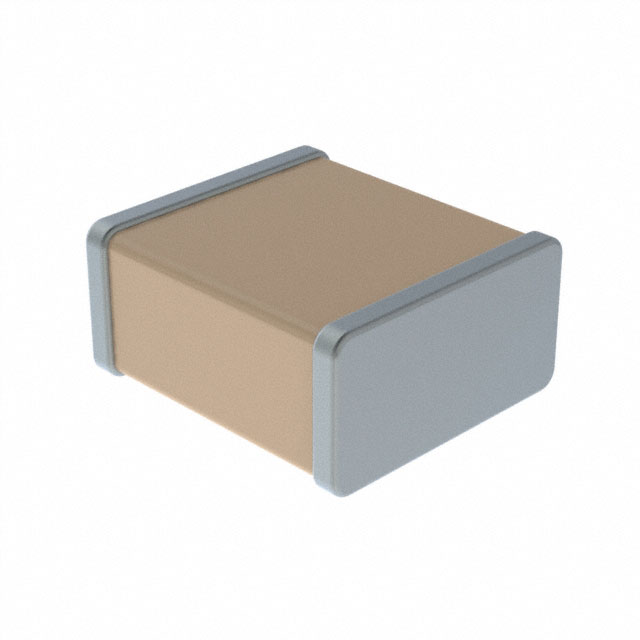

lmages are for reference only.HV2220Y821JXVATHV
CAP CER 820PF 4KV X7R 2220
Datasheet2220 (5750 Metric)
81,926 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
820 pF ±5% 4000V (4kV) Ceramic Capacitor X7R 2220 (5750 Metric)
HV2220Y821JXVATHV
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | HV |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 820 pF |
| Tolerance | ±5% |
| Voltage - Rated | 4000V (4kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension | 0.220" L x 0.200" W (5.59mm x 5.08mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.106" (2.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Failure Rate | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HV2220Y821JXMATHV | HV2220Y102JXMATHV | HV2220Y102JXVATHV | HV2220Y102KX6ATHV |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 820PF 5KV X7R 2220 | CAP CER 1000PF 5KV X7R 2220 | CAP CER 1000PF 4KV X7R 2220 | CAP CER 1.0 NF 6KV X7R 2220 |
| Series | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
