HV2225A221JXMATHV

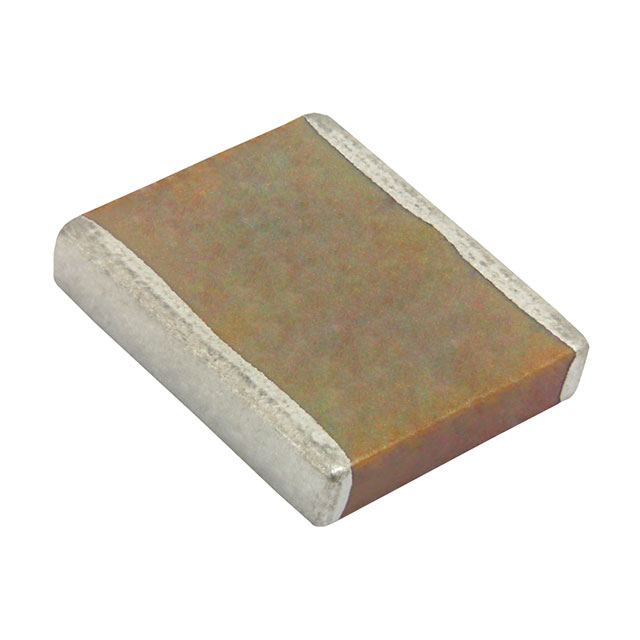

lmages are for reference only.HV2225A221JXMATHV
CAP CER 220 PF 5KV C0G 2225
Datasheet2225 (5763 Metric)
92,320 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 pF ±5% 5000V (5kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric)
HV2225A221JXMATHV
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | HV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 220 pF |
| Tolerance | ±5% |
| Voltage - Rated | 5000V (5kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) |
| Size / Dimension | 0.220" L x 0.250" W (5.59mm x 6.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.106" (2.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HV2225A101JXMATHV | HV2225A470JXMATHV | HV2225A681JXMATHV | HV2225A821JXMATHV |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 100 PF 5KV C0G 2225 | CAP CER 47 PF 5KV C0G 2225 | CAP CER 680 PF 5KV C0G 2225 | CAP CER 820 PF 5KV C0G 2225 |
| Series | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
