IGP20N60H3XKSA1

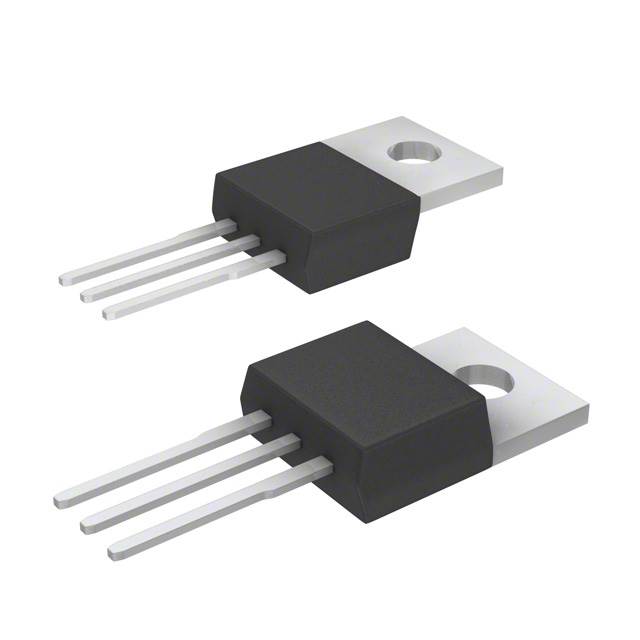

lmages are for reference only.IGP20N60H3XKSA1
IGBT TRENCH FS 600V 40A TO220-3
DatasheetTO-220-3
25,623 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT Trench Field Stop 600 V 40 A 170 W Through Hole PG-TO220-3-1
IGP20N60H3XKSA1
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Infineon Technologies |
| Series | TrenchStop® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 20A |
| Power - Max | 170 W |
| Switching Energy | 690µJ |
| Input Type | Standard |
| Gate Charge | 120 nC |
| Td (on/off) @ 25°C | 16ns/194ns |
| Test Condition | 400V, 20A, 14.6Ohm, 15V |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | PG-TO220-3-1 |
| Reverse Recovery Time (trr) | - |
| Base Product Number | IGP20N60 |
| Product Attribute |  |
 |
 |
 |
| Part Number | IGP20N65F5XKSA1 | IGP20N65H5XKSA1 | RGTV60TS65DGC13 | IRG7PH30K10DPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Rohm Semiconductor | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IGBT TRENCH 650V 42A TO220-3 | IGBT 650V 42A TO220-3 | SHORT-CIRCUIT TOLERANCE, 650V 30 | IGBT 1200V 30A 180W TO247AC |
| Series | TrenchStop™ | TrenchStop® | - | - |
| Packaging | Tube | Tube | Tube | Tube |
