ILD615-4X006

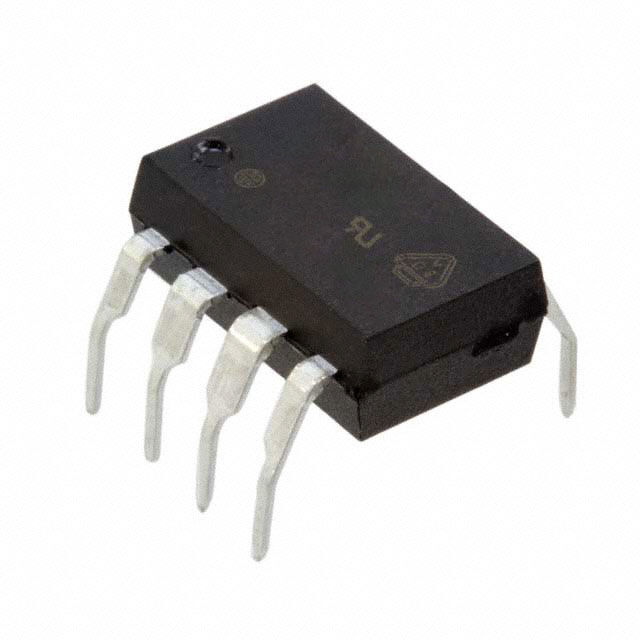

lmages are for reference only.ILD615-4X006
OPTOISO 5.3KV 2CH TRANS 8DIP
Datasheet8-DIP (0.400", 10.16mm)
90,204 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
ILD615-4X006
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 2 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 160% @ 320mA |
| Current Transfer Ratio (Max) | 320% @ 10mA |
| Turn On / Turn Off Time (Typ) | 3µs, 2.3µs |
| Rise / Fall Time (Typ) | 2µs, 2µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | ILD615 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ILD615-4X001 | ILD615-4X009 | ILD615-4X009T | ILD615-4X016 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5.3KV 2CH TRANS 8DIP | OPTOISO 5.3KV 2CH TRANS 8SMD | OPTOISO 5.3KV 2CH TRANS 8SMD | OPTOISO 5.3KV 2CH TRANS 8DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
