IPI600N25N3GAKSA1
lmages are for reference only.IPI600N25N3GAKSA1
MOSFET N-CH 250V 25A TO262-3
DatasheetTO-262-3 Long Leads, I2PAK, TO-262AA
24,919 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 250 V 25A (Tc) 136W (Tc) Through Hole PG-TO262-3
IPI600N25N3GAKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 90µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2350 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 136W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO262-3 |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Base Product Number | IPI600 |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

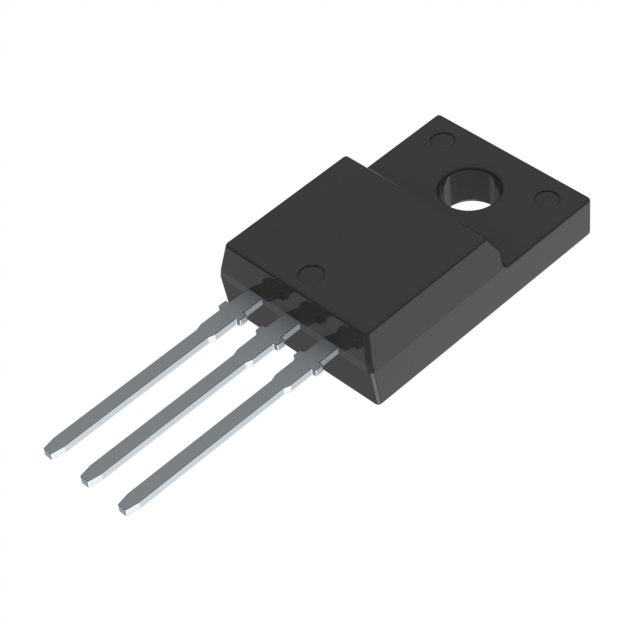

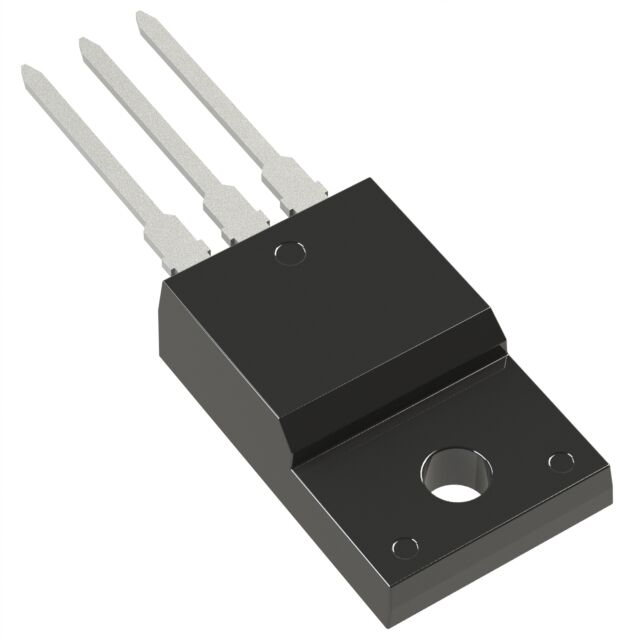

| Part Number | IPA028N04NM3SXKSA1 | IPA028N08N3GXKSA1 | IPA029N06NM5SXKSA1 | IPA029N06NXKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRENCH <= 40V PG-TO220-3 | MOSFET N-CH 80V 89A TO220-FP | MOSFET N-CH 60V 87A TO220 | MOSFET N-CH 60V 84A TO220-FP |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ 5 | OptiMOS™ |
| Packaging | Tube | Tube | Tube | Tube |
