IPT008N06NM5LFATMA1

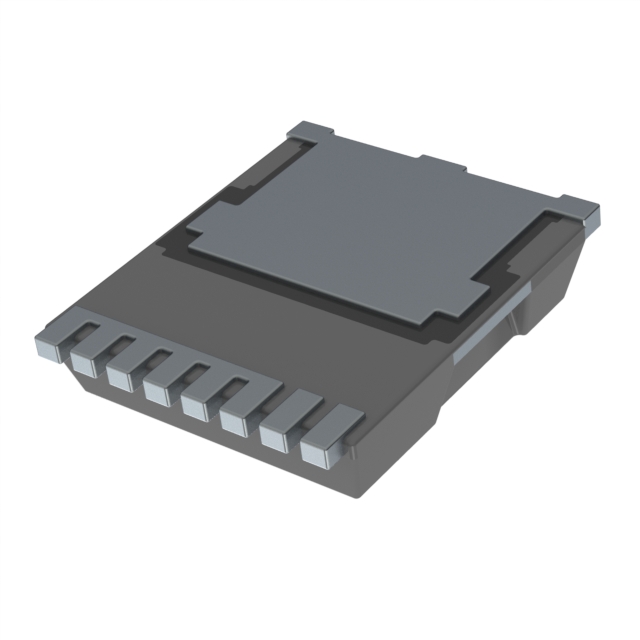

lmages are for reference only.IPT008N06NM5LFATMA1
TRENCH 40<-<100V PG-HSOF-8
Datasheet8-PowerSFN
49,962 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 454A (Tc) 278W (Tc) Surface Mount PG-HSOF-8
IPT008N06NM5LFATMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 454A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 0.8mOhm @ 150A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 980 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 278W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-HSOF-8 |
| Package / Case | 8-PowerSFN |
| Base Product Number | IPT008N |
| Gate Charge (Qg) (Max) @ Vgs | 185 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | IPT004N03LATMA1 | IPT007N06NATMA1 | IPT009N06NM5ATMA1 | IPT010N08NM5ATMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 30V 300A 8HSOF | MOSFET N-CH 60V 300A 8HSOF | TRENCH 40<-<100V | TRENCH 40<-<100V PG-HSOF-8 |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ 5 | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
