Product CatalogPart Number
IPT010N08NM5ATMA1
Manufacturer
Infineon TechnologiesDescription
TRENCH 40<-<100V PG-HSOF-8
Datasheet
DatasheetPackage
8-PowerSFN
In Stock
65,089 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IPT010N08NM5ATMA1
IPT010N08NM5ATMA1
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 80 V 43A (Ta), 425A (Tc) 3.8W (Ta), 375W (Tc) Surface Mount PG-HSOF-8
Quick Inquiry
IPT010N08NM5ATMA1
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 43A (Ta), 425A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1.05mOhm @ 150A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 280µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 16000 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-HSOF-8 |
| Package / Case | 8-PowerSFN |
| Base Product Number | IPT010N |
| Gate Charge (Qg) (Max) @ Vgs | 223 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IPA028N04NM3SXKSA1 | IPA028N08N3GXKSA1 | IPA029N06NM5SXKSA1 | IPA029N06NXKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRENCH <= 40V PG-TO220-3 | MOSFET N-CH 80V 89A TO220-FP | MOSFET N-CH 60V 87A TO220 | MOSFET N-CH 60V 84A TO220-FP |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ 5 | OptiMOS™ |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IPT012N06NATMA1
Infineon Technologies

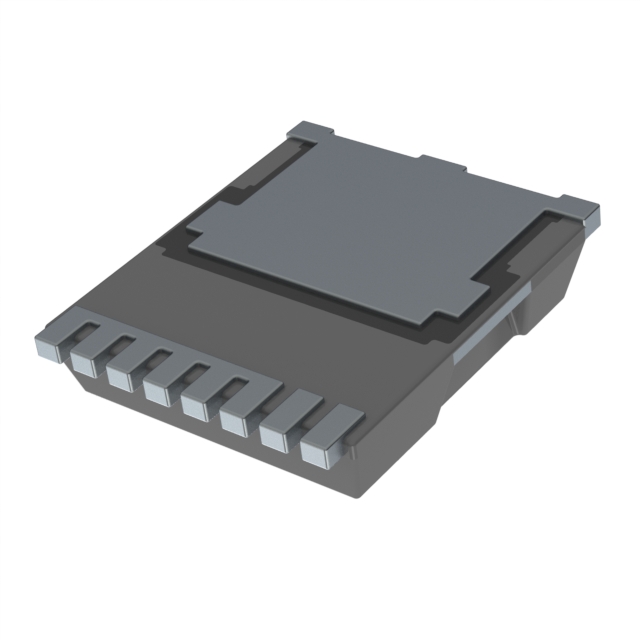

IPT012N08N5ATMA1
