IPW60R031CFD7XKSA1
lmages are for reference only.IPW60R031CFD7XKSA1
MOSFET N-CH 650V 63A TO247-3
DatasheetTO-247-3
27,283 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 63A (Tc) 278W (Tc) Through Hole PG-TO247-3
IPW60R031CFD7XKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | CoolMOS™ CFD7 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 63A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 31mOhm @ 32.6A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1.63mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5623 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 278W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | IPW60R031 |
| Gate Charge (Qg) (Max) @ Vgs | 141 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

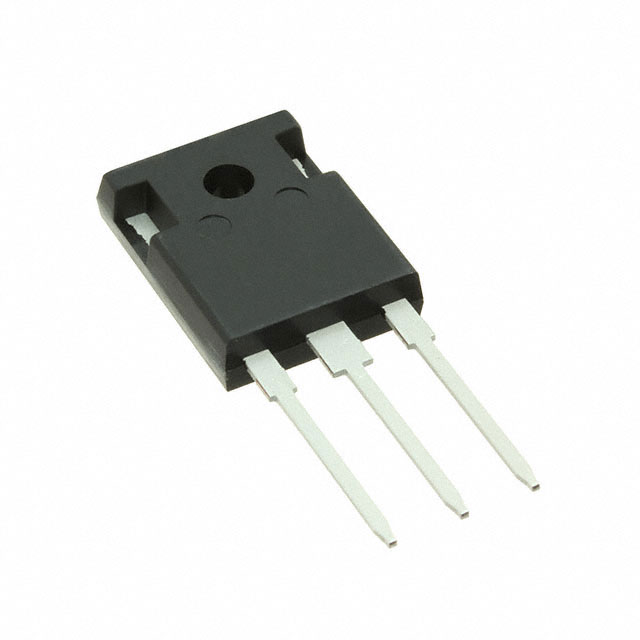

| Part Number | IPW60R037CM8XKSA1 | IPW60R037CSFDXKSA1 | IPW60R037P7XKSA1 | IPW50R140CPFKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IPW60R037CM8XKSA1 | MOSFET N CH | MOSFET N-CH 650V 76A TO247-3 | MOSFET N-CH 550V 23A TO247-3 |
| Series | CoolMOS™ | CoolMOS™ CFSD | CoolMOS™ P7 | CoolMOS™ |
| Packaging | Tube | Tube | Tube | Tube |
