IPW60R055CFD7XKSA1
lmages are for reference only.IPW60R055CFD7XKSA1
MOSFET N-CH 600V 38A TO247-3
DatasheetTO-247-3
60,901 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 38A (Tc) 178W (Tc) Through Hole PG-TO247-3
IPW60R055CFD7XKSA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 900µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3194 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 178W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-3 |
| Package / Case | TO-247-3 |
| Base Product Number | IPW60R055 |
| Gate Charge (Qg) (Max) @ Vgs | 79 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

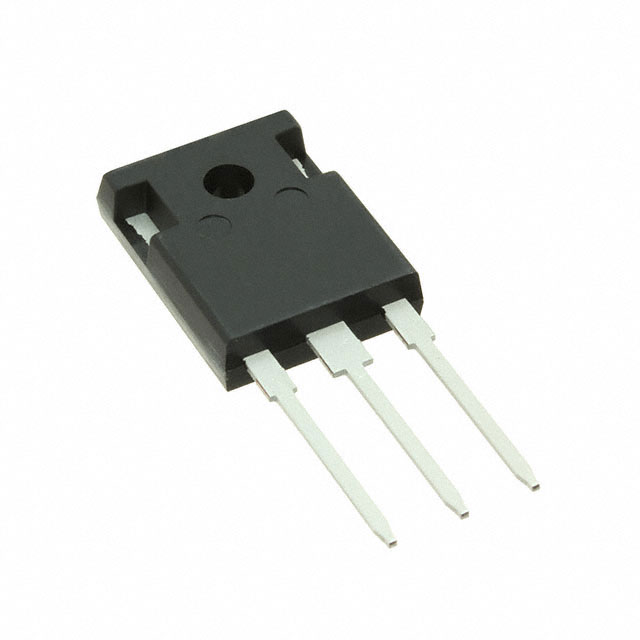

| Part Number | IPW50R140CPFKSA1 | IPW50R190CEFKSA1 | IPW50R199CPFKSA1 | IPW50R250CPFKSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 550V 23A TO247-3 | MOSFET N-CH 500V 18.5A TO247-3 | MOSFET N-CH 550V 17A TO247-3 | MOSFET N-CH 500V 13A TO247-3 |
| Series | CoolMOS™ | CoolMOS™ | CoolMOS™ | CoolMOS™ |
| Packaging | Tube | Tube | Tube | Tube |
