Product CatalogPart Number
IRFH3702TR2PBF
Manufacturer
Infineon TechnologiesDescription
MOSFET N-CH 30V 16A 8PQFN
Datasheet
DatasheetPackage
8-PowerVDFN
In Stock
72,847 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRFH3702TR2PBF
IRFH3702TR2PBF
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 30 V 16A (Ta), 42A (Tc) Surface Mount 8-PQFN (3x3)
Quick Inquiry
IRFH3702TR2PBF
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 7.1mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1510 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (3x3) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

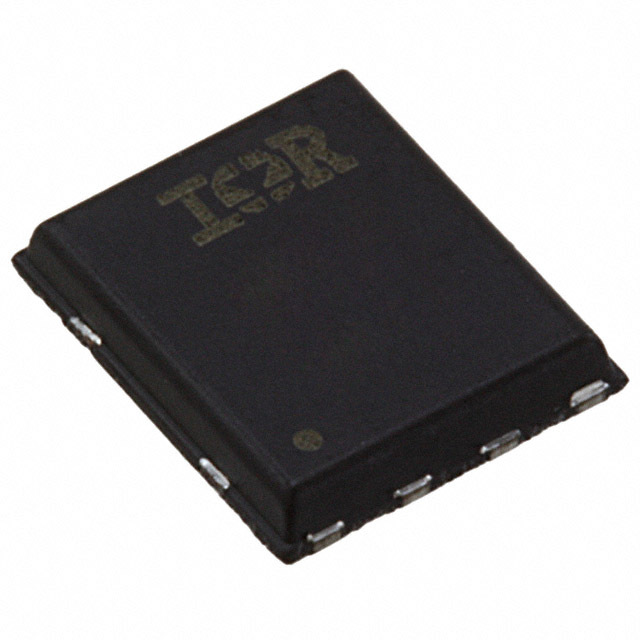

| Part Number | IRFH3702TRPBF | IRFH3707TR2PBF | IRFH3707TRPBF | IRFH4201TRPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 30V 16A/42A 8PQFN | MOSFET N-CH 30V 12A/29A 8PQFN | MOSFET N-CH 30V 12A/29A 8PQFN | MOSFET N-CH 25V 49A 8PQFN |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
