IRFH3702TRPBF
Manufacturer
Infineon TechnologiesDescription
MOSFET N-CH 30V 16A/42A 8PQFN
Datasheet
DatasheetPackage
8-PowerVDFN
In Stock
71,694 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRFH3702TRPBF
IRFH3702TRPBF
lmages are for reference only.Payment Methods
Delivery Services

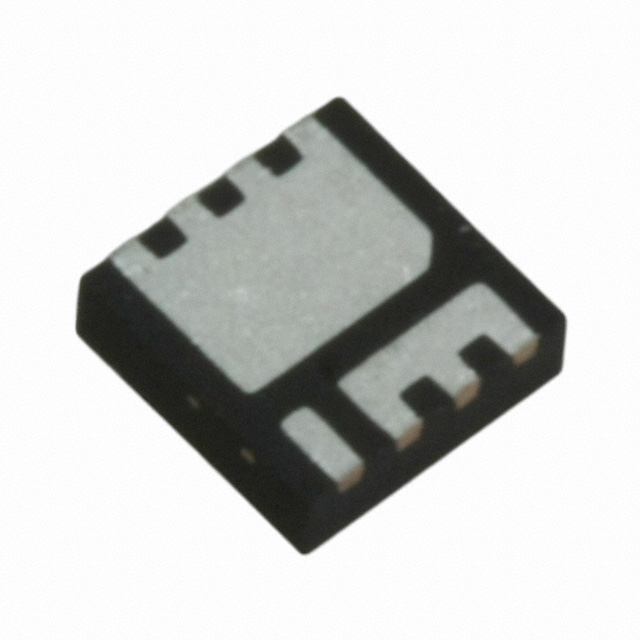

N-Channel 30 V 16A (Ta), 42A (Tc) 2.8W (Ta) Surface Mount 8-PQFN (3x3)
Quick Inquiry
IRFH3702TRPBF
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.1mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1510 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (3x3) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | IRFH3702 |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
