IRFH7440TRPBF
lmages are for reference only.IRFH7440TRPBF
IRFH7440 - 12V-300V N-CHANNEL PO
Datasheet8-PowerTDFN
48,938 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 85A (Tc) 104W (Tc) Surface Mount 8-PQFN (5x6)
IRFH7440TRPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET®, StrongIRFET™ |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 85A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4574 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | IRFH7440 |
| Gate Charge (Qg) (Max) @ Vgs | 138 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

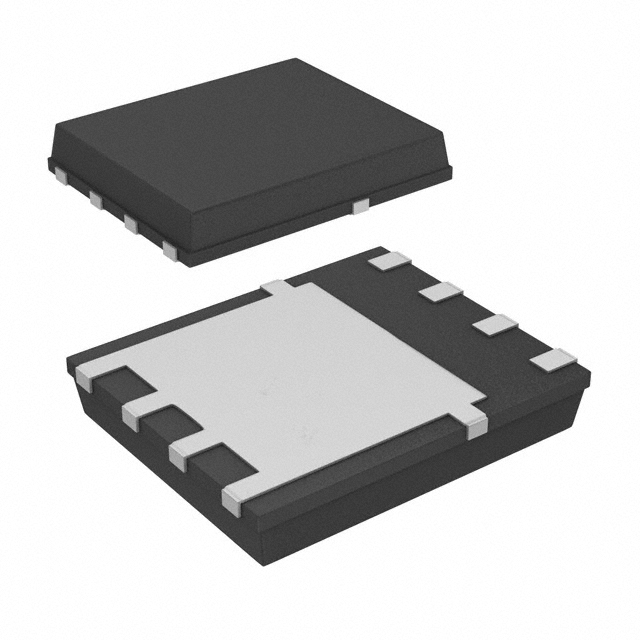

| Part Number | IRFH7440TR2PBF | IRFH7440TRPBF | IRFH7446TR2PBF | IRFH7446TRPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 40V 85A 8PQFN | MOSFET N-CH 40V 85A 8PQFN | MOSFET N CH 40V 85A PQFN 5X6 | MOSFET N-CH 40V 85A 8PQFN |
| Series | - | HEXFET®, StrongIRFET™ | - | HEXFET®, StrongIRFET™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
