IRFH7110TR2PBF
lmages are for reference only.IRFH7110TR2PBF
MOSFET N CH 100V 11A PQFN5X6
Datasheet8-TQFN Exposed Pad
85,502 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 11A (Ta), 58A (Tc) Surface Mount 8-PQFN (5x6)
IRFH7110TR2PBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 13.5mOhm @ 35A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 100µA |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3240 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-TQFN Exposed Pad |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 87 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

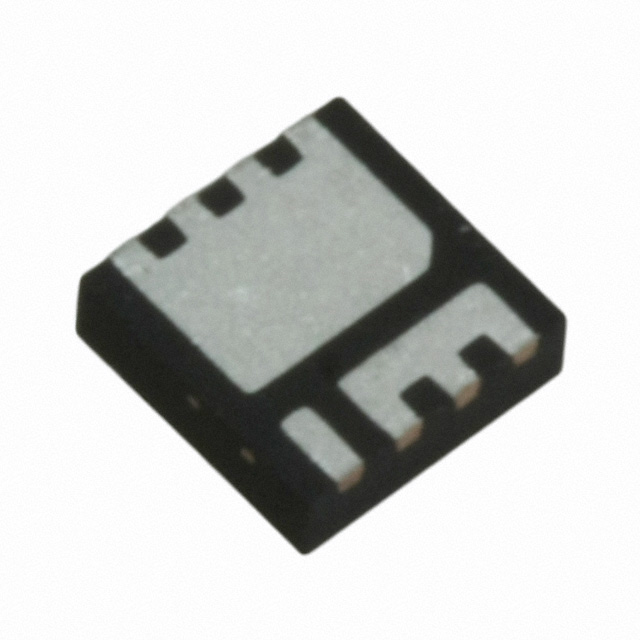

| Part Number | IRFH7110TRPBF | IRFH3702TR2PBF | IRFH3702TRPBF | IRFH3707TR2PBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 100V 11A/58A 8PQFN | MOSFET N-CH 30V 16A 8PQFN | MOSFET N-CH 30V 16A/42A 8PQFN | MOSFET N-CH 30V 12A/29A 8PQFN |
| Series | HEXFET® | - | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
