IRFHE4250DTRPBF

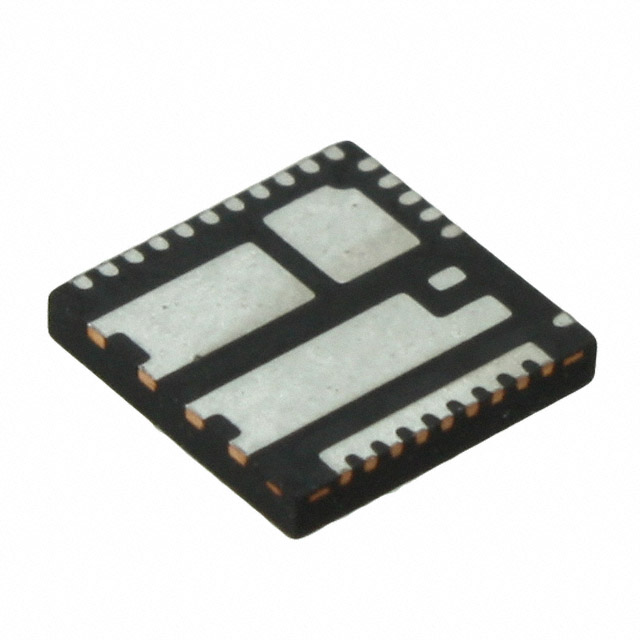

lmages are for reference only.IRFHE4250DTRPBF
MOSFET 2N-CH 25V 86A 32QFN
Datasheet32-PowerVFQFN
35,424 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 25V 86A (Tc), 303A (Tc) 156W (Tc) Surface Mount 32-PQFN (6x6)
IRFHE4250DTRPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 86A (Tc), 303A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.75mOhm @ 27A, 10V, 0.9mOhm @ 27A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 35µA, 2.1V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 4.5V, 53nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1735pF @ 13V, 4765pF @ 13V |
| Power - Max | 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerVFQFN |
| Supplier Device Package | 32-PQFN (6x6) |
| Base Product Number | IRFHE4250 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
.jpg "TPC8211(TE12L,Q,M)") |
 |
|
| Part Number | IRFHE4250DTRPBF | TPC8211(TE12L,Q,M) | SI3590DV-T1-E3 | RQM2201DNS#P0 |
| Manufacturer | Infineon Technologies | Toshiba Semiconductor and Storage | Vishay Siliconix | Renesas |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ||
| Description | MOSFET 2N-CH 25V 86A/303A 32QFN | MOSFET 2N-CH 30V 5.5A 8SOP | MOSFET N/P-CH 30V 2.5A 6TSOP | MOSFET 2N-CH 60V 2A 6HWSON |
| Series | FASTIRFET™ | - | TrenchFET® | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
