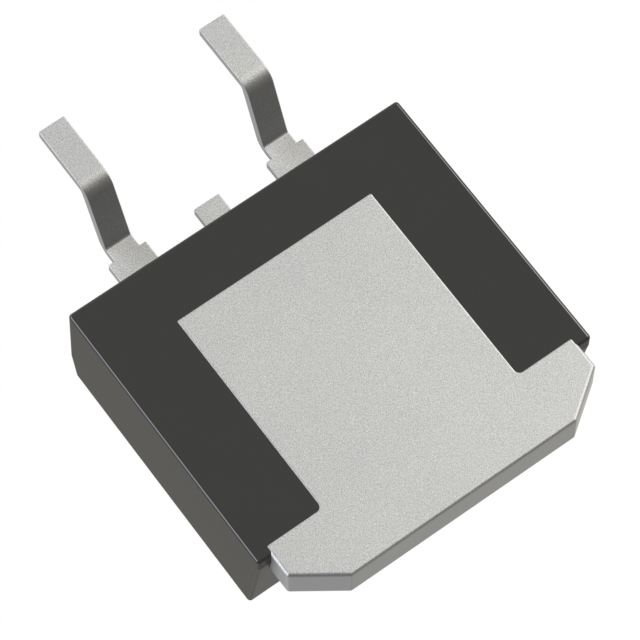

IGBT 430 V 15.5 A 166.7 W Surface Mount TO-263 (D2PAK)
ISL9V2540S3ST
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | EcoSPARK® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 430 V |
| Current - Collector (Ic) (Max) | 15.5 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 4V, 6A |
| Power - Max | 166.7 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 15.1 nC |
| Td (on/off) @ 25°C | -/3.64µs |
| Test Condition | 300V, 1kOhm, 5V |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Reverse Recovery Time (trr) | - |
| Base Product Number | ISL9V2540 |
| Product Attribute |  |
 |
 |
|
| Part Number | ISL9V2540S3ST | ISL9V2540S3ST-F085C | ISL9V5045S3ST-F085C | ISL9V5036S3ST_SB82026C |
| Manufacturer | Fairchild Semiconductor | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | |||
| Description | INSULATED GATE BIPOLAR TRANSISTO | IGBT, 430V, 15A, 1.77V, 250MJ, D | ECOSPARK1 IGN-IGBT TO263 | INTEGRATED CIRCUIT |
| Series | EcoSPARK® | EcoSPARK® | EcoSPARK® | EcoSPARK® |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
