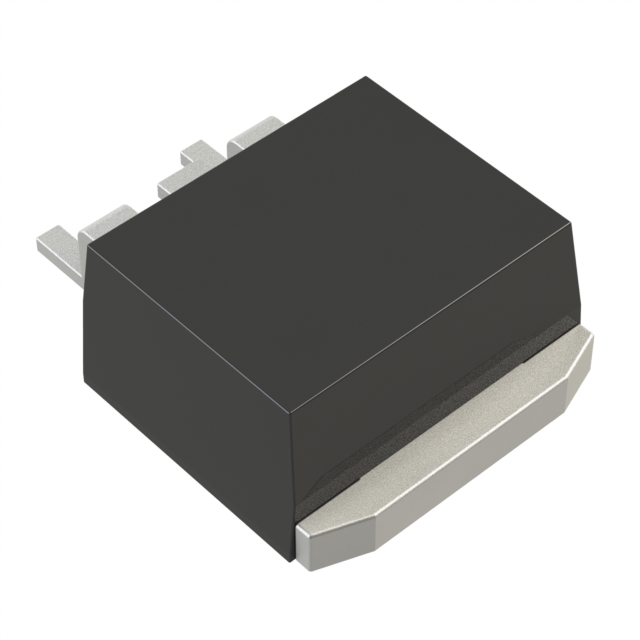

IGBT 480 V 51 A 300 W Surface Mount TO-263 (D2PAK)
ISL9V5045S3ST-F085C
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | EcoSPARK® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 480 V |
| Current - Collector (Ic) (Max) | 51 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 4V, 10A |
| Power - Max | 300 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 32 nC |
| Td (on/off) @ 25°C | -/10.8µs |
| Test Condition | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ISL9V5045S3S | ISL9V5045S3ST | ISL9V5045S3ST-F085 | ISL9V2040D3S |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IGBT 480V 51A 300W D2PAK | IGBT 480V 51A TO263AB | IGBT 480V 51A 300W D2PAK | IGBT 430V 10A 130W TO252AA |
| Series | EcoSPARK® | EcoSPARK® | EcoSPARK® | EcoSPARK® |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
