IXBA14N300HV
lmages are for reference only.Payment Methods
Delivery Services

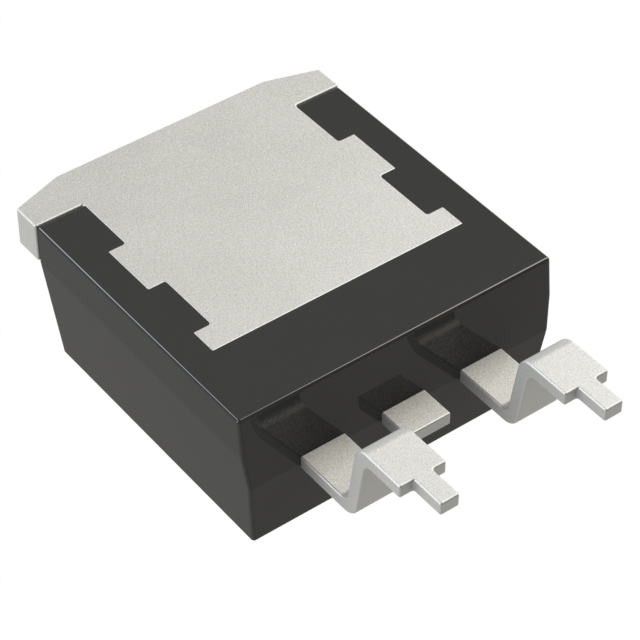

IGBT NPT 3000 V 38 A 200 W Surface Mount TO-263
IXBA14N300HV
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | BIMOSFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V |
| Current - Collector (Ic) (Max) | 38 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 14A |
| Power - Max | 200 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 62 nC |
| Td (on/off) @ 25°C | 40ns/166ns |
| Test Condition | 960V, 14A, 20Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 |
| Reverse Recovery Time (trr) | 1.4 µs |
| Base Product Number | IXBA14 |
| Product Attribute |  |
 |
 |
 |
| Part Number | IXYA20N120B4HV | IXBX25N250 | IXBH28N170A | IXYX200N65B3 |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 1200V 20A GENX4 XPT TO263D2 | IGBT 2500V 55A PLUS247-3 | IGBT 1700V 30A 300W TO247AD | IGBT |
| Series | GenX4™, XPT™ | BIMOSFET™ | BIMOSFET™ | XPT™, GenX3™ |
| Packaging | Tube | Tube | Tube | Tube |
