IXBH14N300HV
Manufacturer
IXYSDescription
DISC IGBT BIMSFT VERYHIVOLT TO-2
Datasheet
DatasheetPackage
TO-247-3
In Stock
70,390 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXBH14N300HV
IXBH14N300HV
lmages are for reference only.Payment Methods
Delivery Services

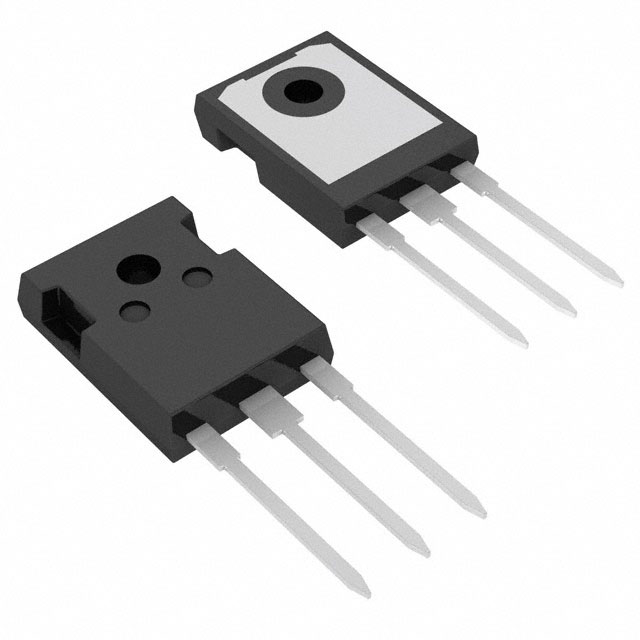

IGBT 3000 V 38 A 200 W Through Hole TO-247HV (IXBH)
Quick Inquiry
IXBH14N300HV
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | BIMOSFET™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V |
| Current - Collector (Ic) (Max) | 38 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 14A |
| Power - Max | 200 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 62 nC |
| Td (on/off) @ 25°C | - |
| Test Condition | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247HV (IXBH) |
| Reverse Recovery Time (trr) | 1.4 µs |
| Base Product Number | IXBH14 |
