Product CatalogPart Number
IXFX180N085
Manufacturer
IXYSDescription
MOSFET N-CH 85V 180A PLUS247-3
Datasheet
DatasheetPackage
TO-247-3 Variant
In Stock
39,838 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXFX180N085
IXFX180N085
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 85 V 180A (Tc) 560W (Tc) Through Hole PLUS247™-3
Quick Inquiry
IXFX180N085
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | HiPerFET™ |
| Packaging | Tube |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 85 V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 8mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9100 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 560W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PLUS247™-3 |
| Package / Case | TO-247-3 Variant |
| Base Product Number | IXFX180 |
| Gate Charge (Qg) (Max) @ Vgs | 320 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | IXFX180N10 | IXFX180N15P | IXFX180N25T | IXFX100N25 |
| Manufacturer | IXYS | Littelfuse Inc. | Littelfuse Inc. | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 100V 180A PLUS247 | MOSFET N-CH 150V 180A PLUS247-3 | MOSFET N-CH 250V 180A PLUS247-3 | MOSFET N-CH 250V 100A PLUS247-3 |
| Series | HiPerFET™ | HiPerFET™, Polar | HiPerFET™, Trench | HiPerFET™ |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
IXFX100N25
IXYS
IXFX100N65X2
Littelfuse Inc.
IXFX110N65X3
Littelfuse Inc.
IXFX120N20
IXYS
IXFX120N25
IXYS
IXFX120N25P
Littelfuse Inc.
IXFX120N30P3
Littelfuse Inc.
IXFX120N30T
Littelfuse Inc.
IXFX120N60X3
Littelfuse Inc.
IXFX120N65X2
Littelfuse Inc.
IXFX12N90Q
IXYS
IXFX130N65X3
Littelfuse Inc.
IXFX140N25T
Littelfuse Inc.
IXFX140N30P
Littelfuse Inc.
IXFX140N60X3
Littelfuse Inc.

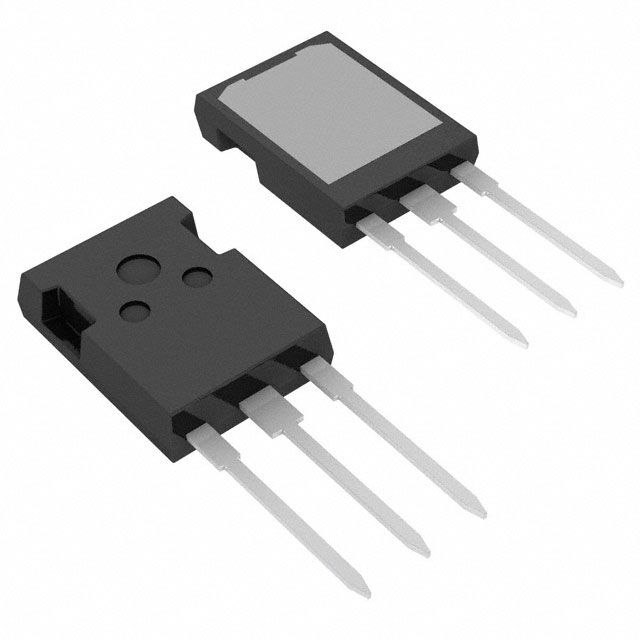

IXFX14N100
