Product CatalogPart Number
IXTH220N055T
Manufacturer
IXYSDescription
MOSFET N-CH 55V 220A TO247
Datasheet
DatasheetPackage
TO-247-3
In Stock
60,080 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXTH220N055T
IXTH220N055T
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 55 V 220A (Tc) 430W (Tc) Through Hole TO-247 (IXTH)
Quick Inquiry
IXTH220N055T
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | TrenchMV™ |
| Packaging | Tube |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 220A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7200 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 430W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 (IXTH) |
| Package / Case | TO-247-3 |
| Base Product Number | IXTH220 |
| Gate Charge (Qg) (Max) @ Vgs | 158 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

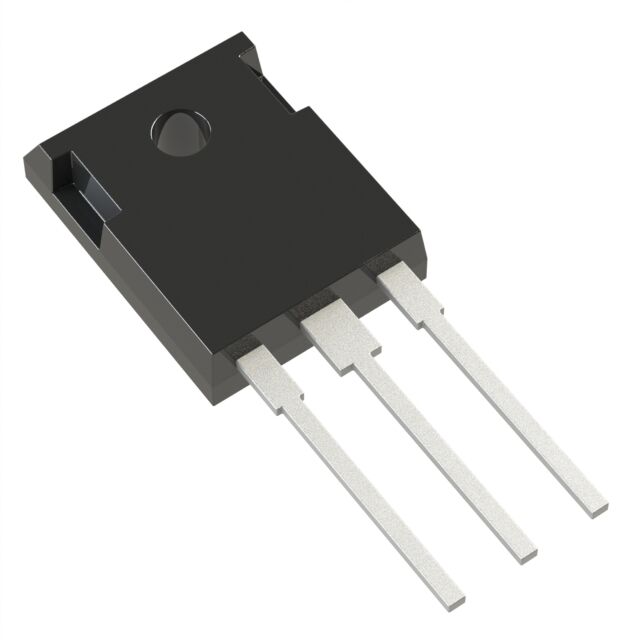

| Part Number | IXTH220N075T | IXTH220N20X4 | IXTH22N50P | IXCP01N90E |
| Manufacturer | IXYS | Littelfuse Inc. | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 75V 220A TO247 | MOSFET N-CH 200V 220A X4 TO-247 | MOSFET N-CH 500V 22A TO247 | MOSFET N-CH 900V 250MA TO220AB |
| Series | TrenchMV™ | Ultra X4 | Polar | - |
| Packaging | Tube | Tube | Tube | Tube |
