IXTH22N50P
Manufacturer
IXYSDescription
MOSFET N-CH 500V 22A TO247
Datasheet
DatasheetPackage
TO-247-3
In Stock
17,898 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IXTH22N50P
IXTH22N50P
lmages are for reference only.Payment Methods
Delivery Services

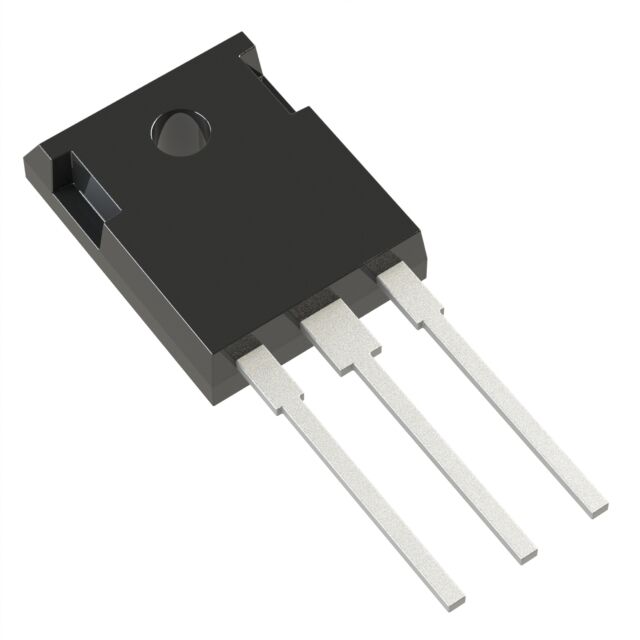

N-Channel 500 V 22A (Tc) 350W (Tc) Through Hole TO-247 (IXTH)
Quick Inquiry
IXTH22N50P
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | IXYS |
| Series | Polar |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2630 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 350W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 (IXTH) |
| Package / Case | TO-247-3 |
| Base Product Number | IXTH22 |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V |
| Grade | - |
| Qualification | - |
