IGBT Trench Field Stop 650 V 122 A 395 W Surface Mount TO-263 (D2PAK)
IXYA55N65B5
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | Gen5 XPT™ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 122 A |
| Current - Collector Pulsed (Icm) | 250 A |
| Vce(on) (Max) @ Vge, Ic | 1.5V @ 15V, 100A |
| Power - Max | 395 W |
| Switching Energy | 550µJ (on), 600µJ (off) |
| Input Type | Standard |
| Gate Charge | 130 nC |
| Td (on/off) @ 25°C | 20ns/200ns |
| Test Condition | 300V, 25A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D2PAK) |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

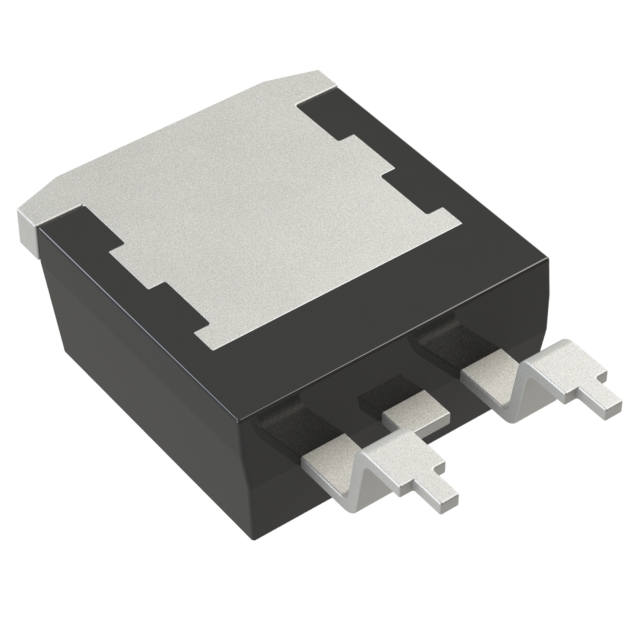

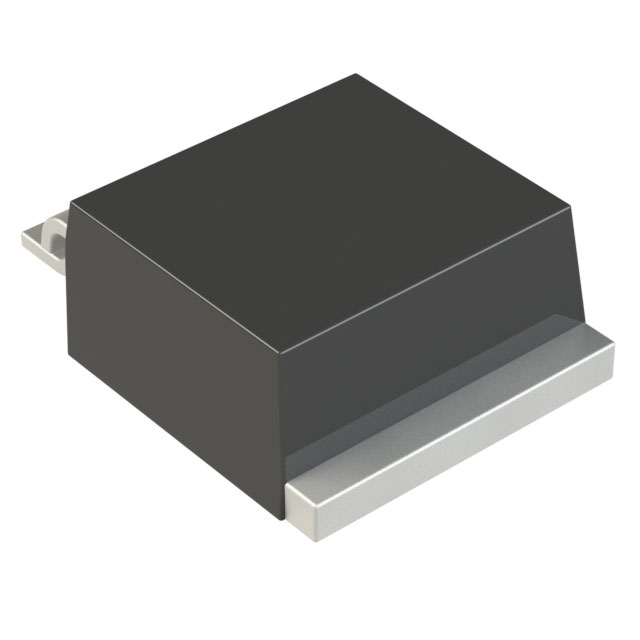

| Part Number | IXYA50N65C3 | IXYA50N65C3-TRL | IXYA50N65C5 | IRG7PH30K10DPBF |
| Manufacturer | IXYS | IXYS | IXYS | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IGBT 650V 130A 600W TO263 | IGBT PT 650V 132A TO263AA | 650V, 50A, XPT Gen5 C5 IGBT in | IGBT 1200V 30A 180W TO247AC |
| Series | GenX3™, XPT™ | GenX3™, XPT™ | XPT™ | - |
| Packaging | Tube | Tape & Reel (TR) | Bulk | Tube |
