J1MAC-12XL
lmages are for reference only.J1MAC-12XL
RELAY GEN PURPOSE SPDT 1A 12V
Datasheet-
52,727 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

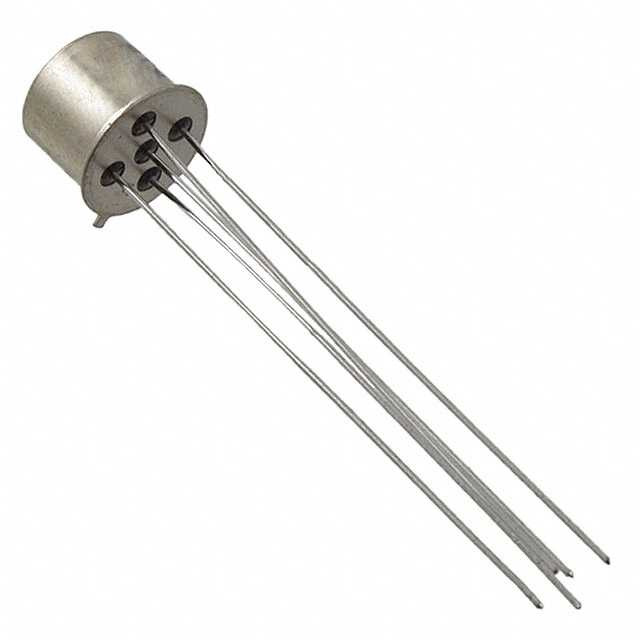

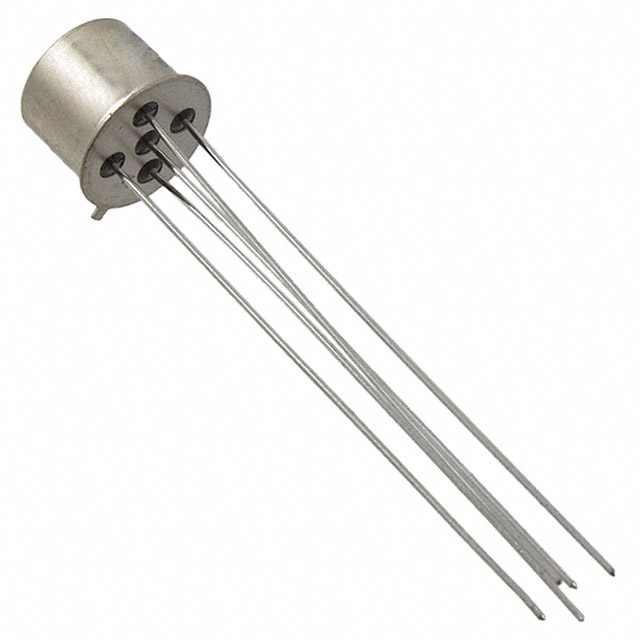

General Purpose Relay SPDT (1 Form C) Through Hole
J1MAC-12XL
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | 1MA, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Load - Max Switching | 115VA, 28W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 0.63 VDC |
| Operate Time | 2 ms |
| Release Time | 2 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | J1MAC |
| Coil Current | 24 mA |
| Coil Resistance | 500 Ohms |
| Product Attribute |  |
|
|
 |
| Part Number | J1MAC-12XLS | J1MAC-18XL | J1MAC-26XL | J1MAC-26XM |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE SPDT 1A 12V | RELAY GEN PURPOSE SPDT 1A 18V | RELAY GEN PURPOSE SPDT 1A 26.5V | RELAY GEN PURPOSE SPDT 1A 26.5V |
| Series | 1MA, CII | 1MA, CII | 1MA, CII | 1MA, CII |
| Packaging | Bulk | Bulk | Bulk | Bulk |
