Product CatalogPart Number
JAN2N697
Manufacturer
Microchip TechnologyDescription
TRANS NPN 40V TO5
Datasheet
DatasheetPackage
TO-205AA, TO-5-3 Metal Can
In Stock
57,443 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
JAN2N697
JAN2N697
lmages are for reference only.Payment Methods
Delivery Services

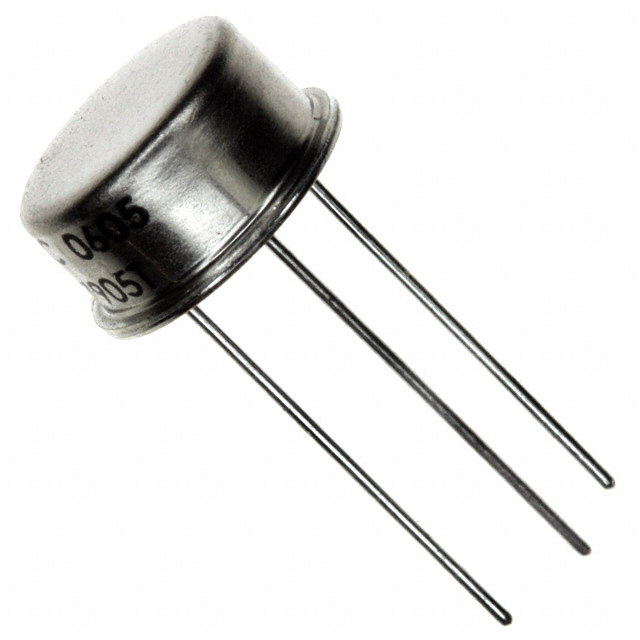

Bipolar (BJT) Transistor NPN 40 V 600 mW Through Hole TO-5
Quick Inquiry
JAN2N697
Specifications
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | - |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 15mA, 150mA |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 10V |
| Power - Max | 600 mW |
| Frequency - Transition | - |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package | TO-5 |
| Base Product Number | - |
| Grade | Military |
| Qualification | MIL-PRF-19500/99 |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | JAN2N697S | JAN2N1016B | JAN2N1479 | JAN2N1480 |
| Manufacturer | Microchip Technology | Microsemi Corporation | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | TRANS NPN 40V TO39 | TRANS NPN 100V 7.5A TO-82 | TRANS NPN 40V 1.5A TO-5 | TRANS NPN 55V 1.5A TO-5AA |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
