Product CatalogPart Number
KBP301G
Manufacturer
SMC Diode SolutionsDescription
BRIDGE RECT 1PHASE 100V 3A KBP
Datasheet
DatasheetPackage
4-ESIP
In Stock
93,975 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KBP301G
KBP301G
lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 100 V Through Hole KBP
Quick Inquiry
KBP301G
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 3 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-ESIP |
| Supplier Device Package | KBP |
| Base Product Number | KBP301 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | KBP301-BP | KBP301G-BP | KBP3005G | KBP3005G-BP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | SMC Diode Solutions | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 100V 3A KBPR | BRIDGE RECT 100V 3A GBP | BRIDGE RECT 1PHASE 50V 3A KBP | BRIDGE RECT 50V 3A GBP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tube | Bulk |
Customers Also Interested in
Recommended Products

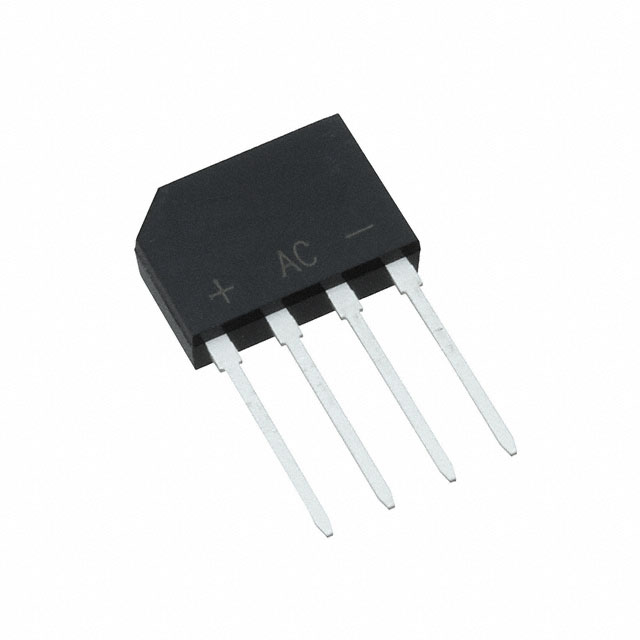

KBP3005G
SMC Diode Solutions
KBP3005G-BP
Micro Commercial Co
KBP301-BP
Micro Commercial Co
KBP301G-BP
Micro Commercial Co
KBP302G
SMC Diode Solutions
KBP302G
Diotec Semiconductor
KBP302G-BP
Micro Commercial Co
KBP303G C2
Taiwan Semiconductor Corporation
KBP304G
SMC Diode Solutions
KBP304G
Diodes Incorporated

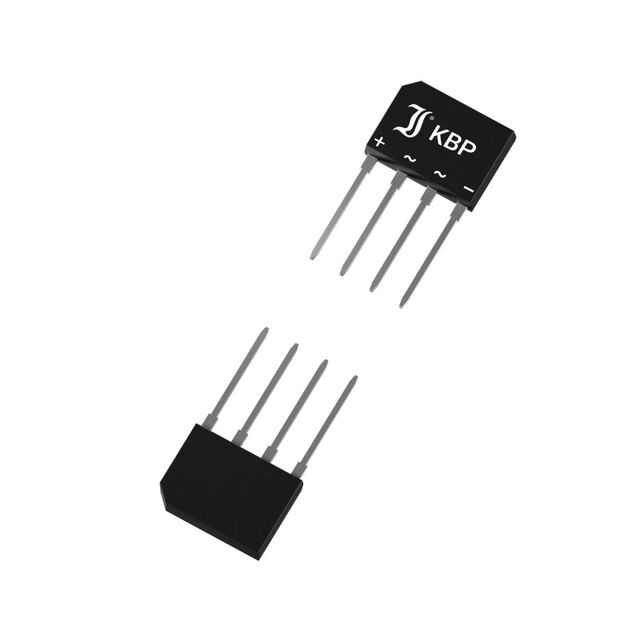

KBP304G
Diotec Semiconductor

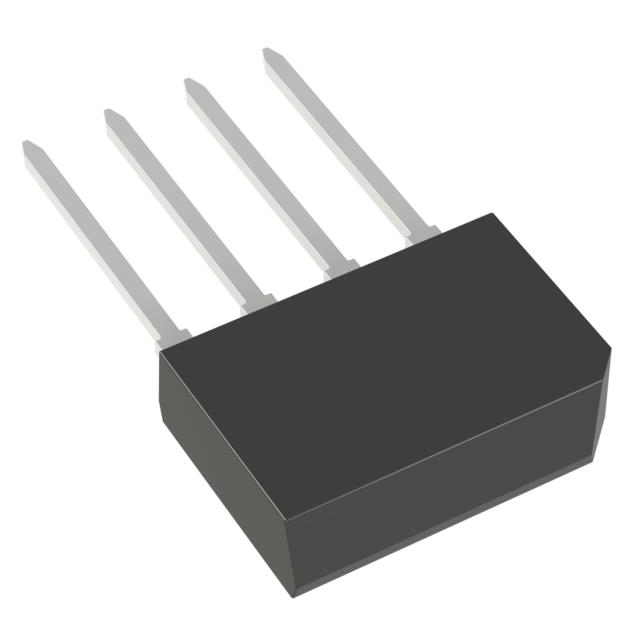

KBP304G-BP
