Product CatalogPart Number
KBP302G
Manufacturer
Diotec SemiconductorDescription
BRIDGE 1-PH KBP 200V 3A 150DEG
Datasheet
DatasheetPackage
4-SIP, KBP
In Stock
47,050 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
KBP302G
KBP302G
lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 200 V Through Hole KBP
Quick Inquiry
KBP302G
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 1.8 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, KBP |
| Supplier Device Package | KBP |
| Base Product Number | KBP302 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | KBP302G | KBP302G-BP | KBP3005G | KBP3005G-BP |
| Manufacturer | SMC Diode Solutions | Micro Commercial Co | SMC Diode Solutions | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 200V 3A KBP | BRIDGE RECT 200V 3A GBP | BRIDGE RECT 1PHASE 50V 3A KBP | BRIDGE RECT 50V 3A GBP |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Bulk |
Customers Also Interested in
Recommended Products
KBP3005G
SMC Diode Solutions
KBP3005G-BP
Micro Commercial Co

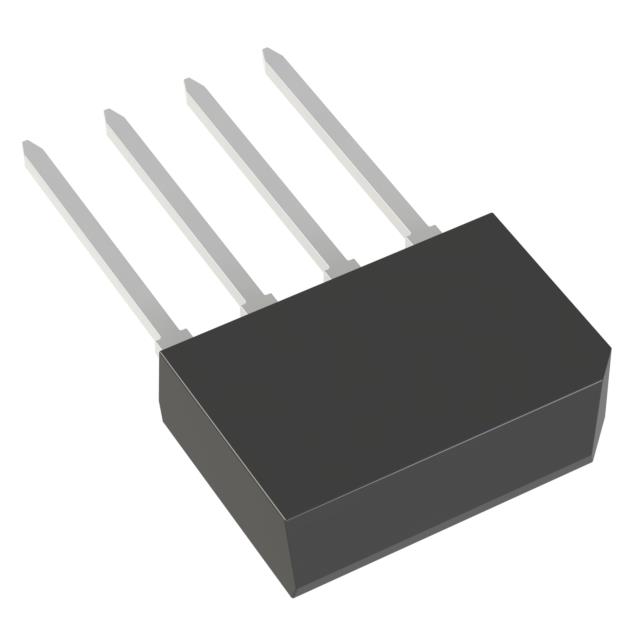

KBP301-BP
Micro Commercial Co

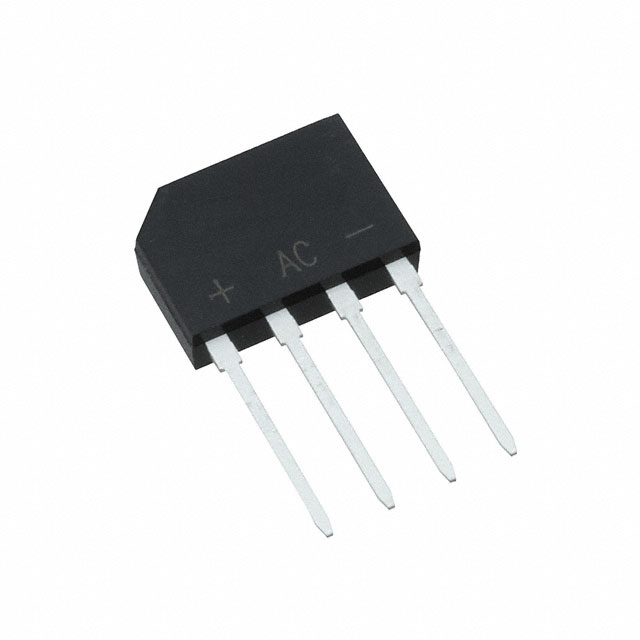

KBP301G
SMC Diode Solutions
KBP301G-BP
Micro Commercial Co
KBP302G
SMC Diode Solutions
KBP302G-BP
Micro Commercial Co
KBP303G C2
Taiwan Semiconductor Corporation
KBP304G
SMC Diode Solutions
KBP304G
Diodes Incorporated

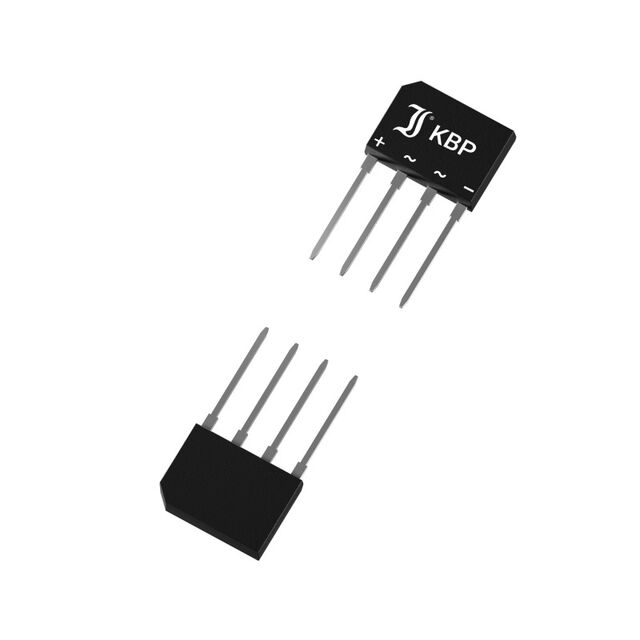

KBP304G
