KBPC50005W
lmages are for reference only.KBPC50005W
BRIDGE RECT 1P 50V 50A KBPC-W
Datasheet4-Square, KBPC-W
63,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 50 V Through Hole KBPC-W
KBPC50005W
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 50 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 25 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, KBPC-W |
| Supplier Device Package | KBPC-W |
| Base Product Number | KBPC50005 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

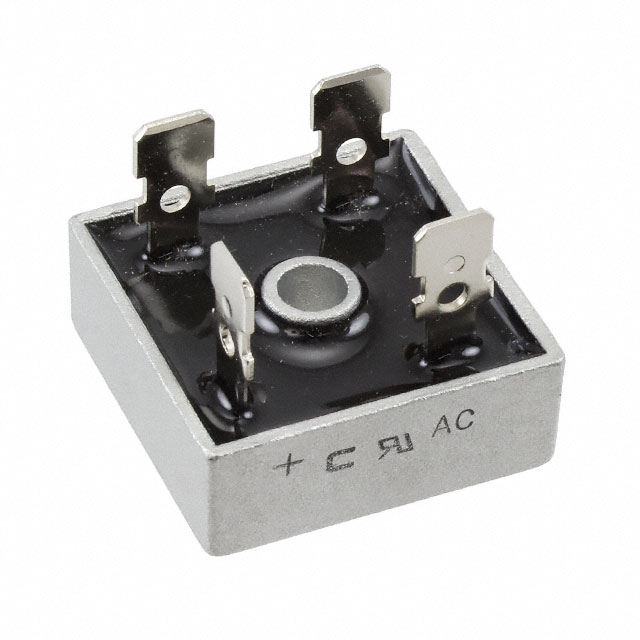

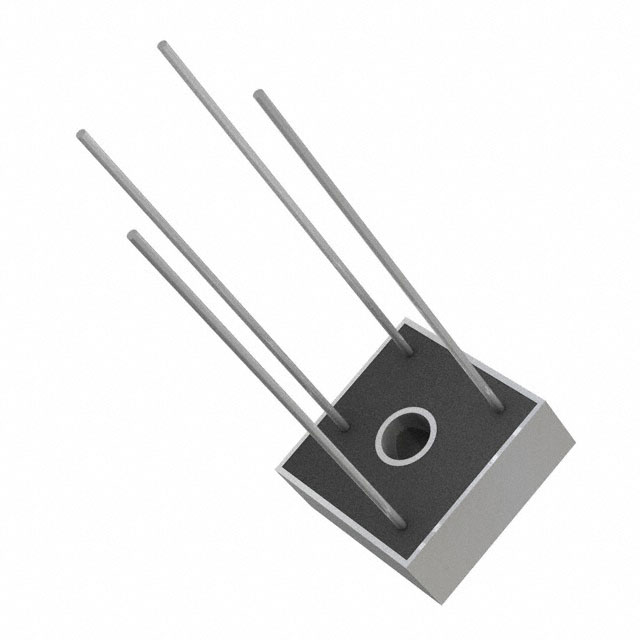

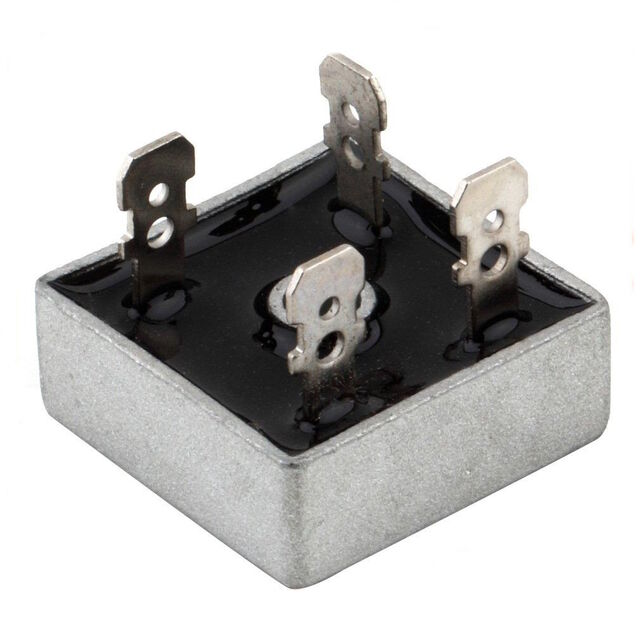

| Part Number | KBPC50005-G | KBPC50005T | KBPC50005W-G | KBPC5000 |
| Manufacturer | Comchip Technology | GeneSiC Semiconductor | Comchip Technology | JATTA |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | BRIDGE RECT 1PHASE 50V 50A KBPC | BRIDGE RECT 1PHASE 50V 50A KBPC | BRIDGE RECT 1P 50V 50A KBPC-W | BRIDGE RECT 1P 600V 50.0A KBPC-5 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tray | Tape & Box (TB) |
