KBPC5004T
lmages are for reference only.KBPC5004T
BRIDGE RECT 1PHASE 400V 50A KBPC
Datasheet4-Square, KBPC-T
43,503 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 400 V QC Terminal KBPC
KBPC5004T
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 25 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | QC Terminal |
| Package / Case | 4-Square, KBPC-T |
| Supplier Device Package | KBPC |
| Base Product Number | KBPC5004 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | KBPC5004-G | KBPC5004FP | KBPC5004W | KBPC5004W-G |
| Manufacturer | Comchip Technology | Diotec Semiconductor | GeneSiC Semiconductor | Comchip Technology |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |

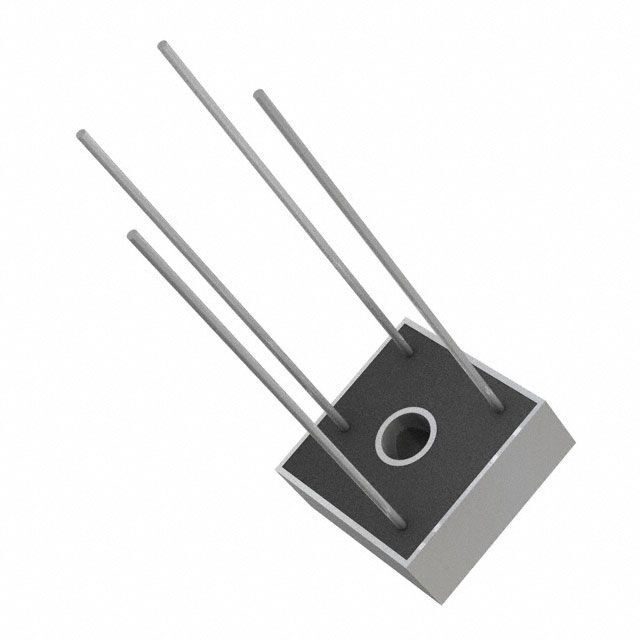

| Description | BRIDGE RECT 1PHASE 400V 50A KBPC | BRIDGE 1-PH KBPC 400V 50A 150DEG | BRIDGE RECT 1P 400V 50A KBPC-W | BRIDGE RECT 1P 400V 50A KBPC-W |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tray |
