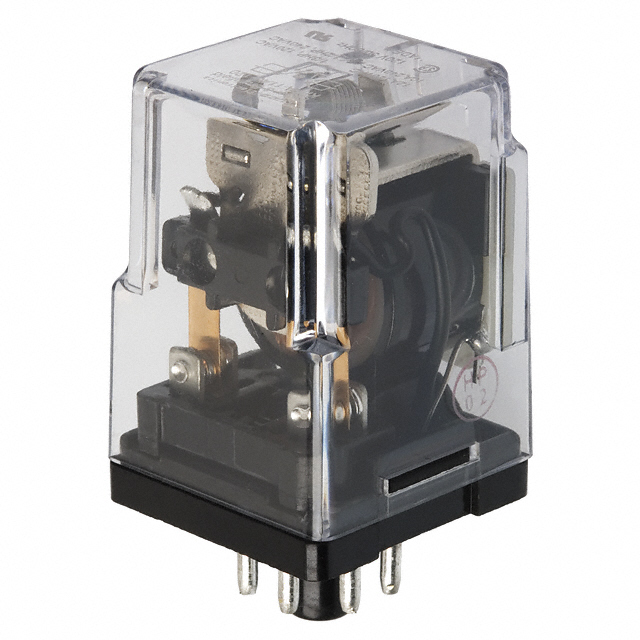

KRPA-11DY-24
lmages are for reference only.KRPA-11DY-24
RELAY GEN PURPOSE DPDT 5A 24V
Datasheet-
41,407 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
KRPA-11DY-24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | KRPA |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 240VAC - Max |
| Load - Max Switching | 1200VA |
| Coil Current | 51 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, 8 Pin (Octal) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 472 Ohms |
| Base Product Number | KRPA-11 |
| Product Attribute |  |
 |
 |
 |
| Part Number | KRPA-11DY-110 | KRPA-11DY-12 | KRPA-11DY-125 | KRPA-11DYF-24 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 5A 110V | RELAY GEN PURPOSE DPDT 5A 12V | RELAY GEN PURPOSE DPDT 5A 125V | RELAY GEN PURPOSE DPDT 5A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Tray | Tray | Bulk |
