L201314A-151LHF
lmages are for reference only.L201314A-151LHF
150.00UH, 15%, 43.00MOHM, 6.0A.
DatasheetRadial, Vertical Cylinder, 4 Leads (Open)
42,732 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

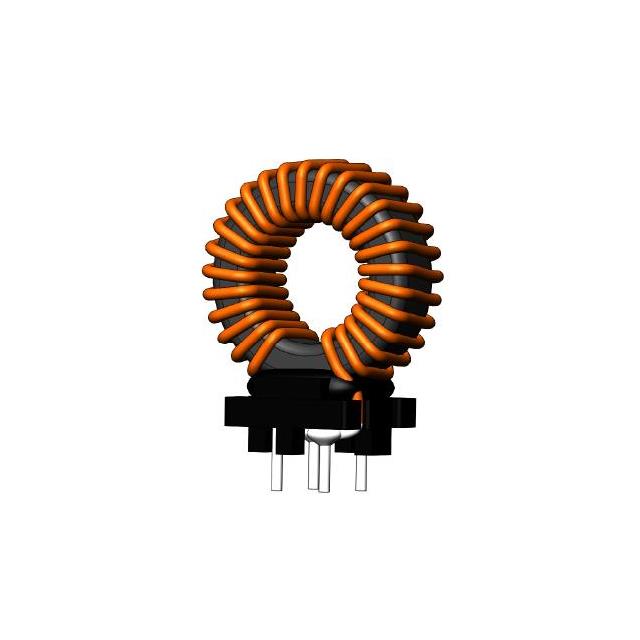

150 µH Toroidal Inductor 6 A 43mOhm Radial, Vertical Cylinder, 4 Leads (Open)
L201314A-151LHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | L201314A |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Sendust |
| Inductance | 150 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | - |
| DC Resistance (DCR) | 43mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.984" L x 0.610" W (25.00mm x 15.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | L201314A-101LHF | L201314A-101LHF | L201314A-102LHF | L201314A-201LHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS Compliant | RoHS Compliant |
| Description | 100.00UH, 15%, 26.00MOHM, 8.0A. | 100.00UH, 15%, 26.00MOHM, 8.0A. | 1000.00uH, 15%, 950.00mOhm, 1.1A | 200.00UH, 15%, 75.00MOHM, 4.5A. |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tray | Tray | Tray | Tray |
