L201316Q-171MHF

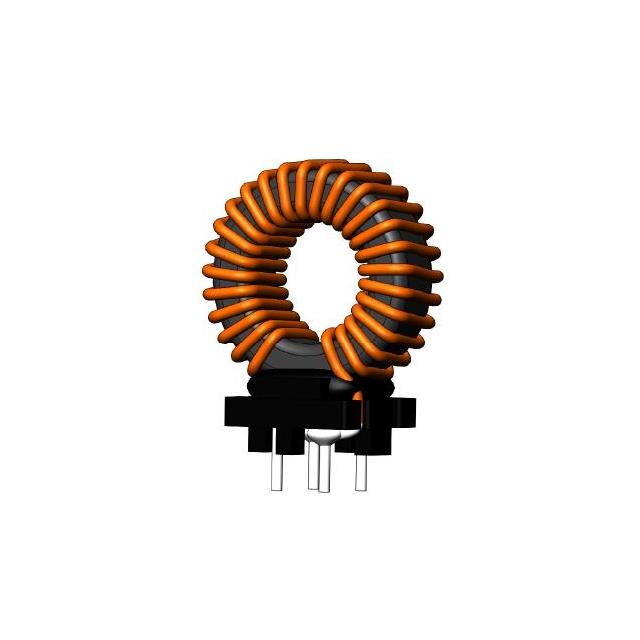

lmages are for reference only.L201316Q-171MHF
175.0uH, 20%, 13.20mOhm, 19.2A M
DatasheetRadial, Horizontal (Open)
62,483 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
175 µH Unshielded Wirewound Inductor 18 A 13.2mOhm Max Radial, Horizontal (Open)
L201316Q-171MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | L201316Q |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 175 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 28.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 13.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | Radial, Horizontal (Open) |
| Size / Dimension | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
| Height - Seated (Max) | 1.244" (31.60mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | L201316Q-101MHF | L201316Q-101MHF | L201316Q-110MHF | L201316Q-131MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 105.0UH, 20%, 7.10MOHM, 25.0A MA | 105.0UH, 20%, 7.10MOHM, 25.0A MA | 11.6UH, 20%, 0.86MOHM, 75.0A MAX | 135.0uH, 20%, 10.10mOhm, 21.8A M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tray |
