LFTVXO076349

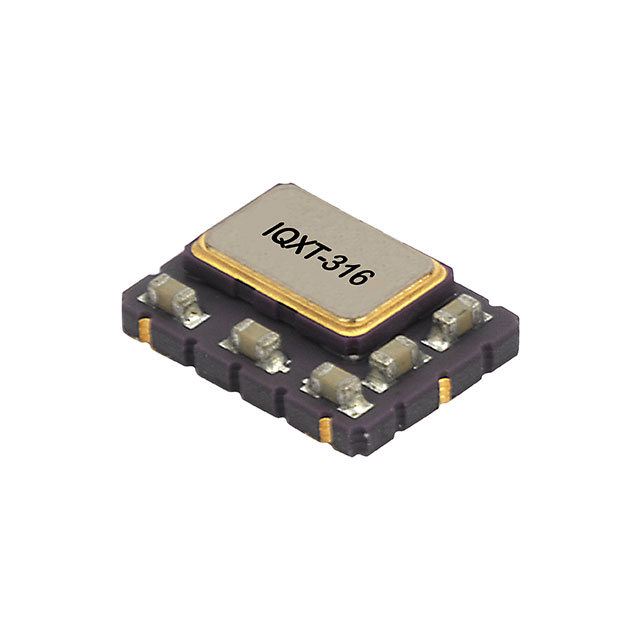

lmages are for reference only.LFTVXO076349
XTAL OSC VCTCXO 30.7200MHZ SNWV
Datasheet6-SMD, No Lead
11,182 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30.72 MHz VCTCXO Clipped Sine Wave Oscillator 3.3V 6-SMD, No Lead
LFTVXO076349
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | IQD Frequency Products |
| Series | IQXT-316-9 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 30.72 MHz |
| Function | - |
| Output | Clipped Sine Wave |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±250ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -5°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 4.5mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | LFTVXO076343REEL | LFTVXO076344 | LFTVXO076345REEL | LFTVXO076346REEL |
| Manufacturer | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 19.2000MHZ SNWV | XTAL OSC VCTCXO 19.2000MHZ SNWV | XTAL OSC VCTCXO 30.7200MHZ HCMOS | XTAL OSC VCTCXO 25.0000MHZ SNWV |
| Series | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products | IQD Frequency Products |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
