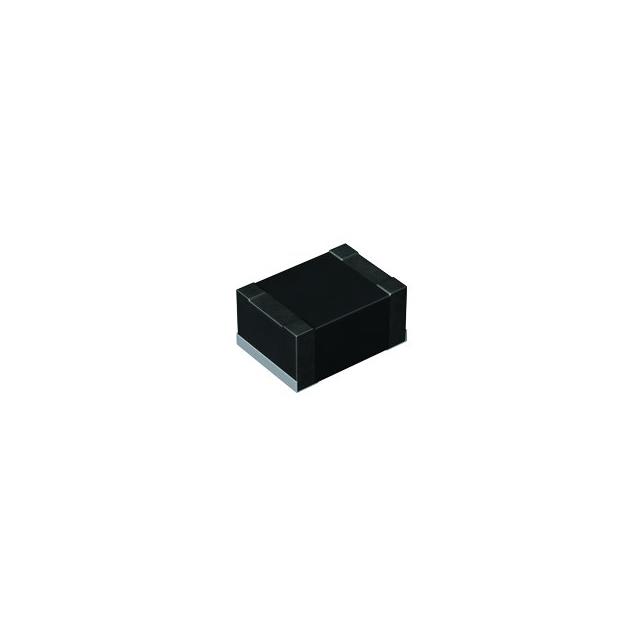

LLQPB201210T101M
lmages are for reference only.LLQPB201210T101M
FIXED IND 100UH 85MA 10.01OHM SM
Datasheet0805 (2012 Metric)
39,257 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH Unshielded Wirewound Inductor 85 mA 7.7Ohm 0805 (2012 Metric)
LLQPB201210T101M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | LLQPB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 85 mA |
| Current - Saturation (Isat) | 85mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 7.7Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | 6MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LLQPB201210T100M | LLQPB201210T150M | LLQPB201210T1R0M | LLQPB201210T1R0M06 |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 330MA 1.105OHM SM | FIXED IND 15UH 300MA 1.3 OHM SMD | FIXED IND 1UH 850MA 175.5MOHM SM | FIXED IND 1UH 1.23A 140.4MOHM SM |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
