LT3061EMS8E-5#PBF

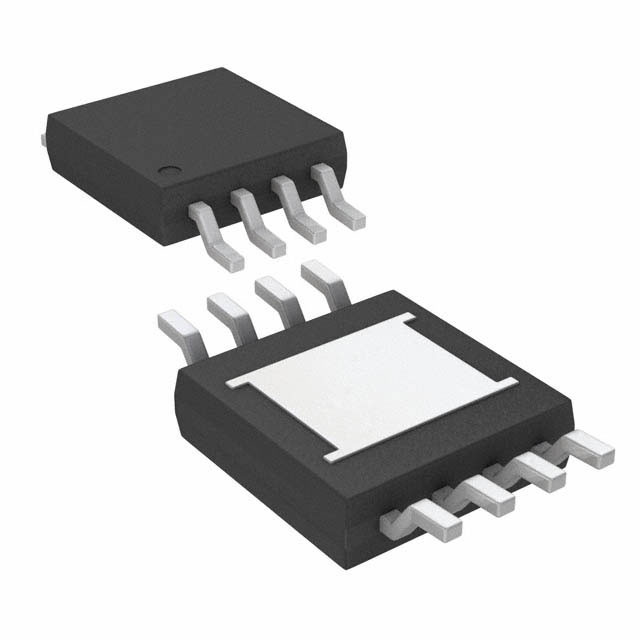

lmages are for reference only.LT3061EMS8E-5#PBF
IC REG LINEAR 5V 100MA 8MSOP
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
65,176 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA 8-MSOP-EP
LT3061EMS8E-5#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.43V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 90 µA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Base Product Number | LT3061 |
| Current - Supply (Max) | 4 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT3061EMS8E-5#TRPBF | LT3061EMS8E#PBF | LT3061EMS8E#TRPBF | LT3061EMS8E-3.3#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 5V 100MA 8MSOP | IC REG LIN POS ADJ 100MA 8MSOP | IC REG LIN POS ADJ 100MA 8MSOP | IC REG LINEAR 3.3V 100MA 8MSOP |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
