LT3063IMS8E#TRPBF

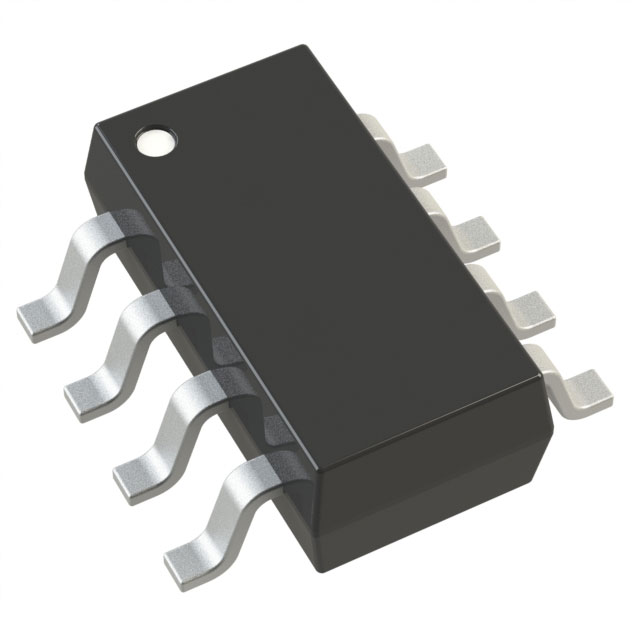

lmages are for reference only.LT3063IMS8E#TRPBF
IC REG LIN POS ADJ 200MA 8MSOP
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
92,346 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 200mA 8-MSOP-EP
LT3063IMS8E#TRPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 19V |
| Voltage Dropout (Max) | 0.53V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 90 µA |
| PSRR | 85dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Base Product Number | LT3063 |
| Current - Supply (Max) | 10 mA |
| Product Attribute | |
|
|
|
| Part Number | LT3063IMS8E#PBF | LT3063IMS8E-3.3#PBF | LT3063IMS8E-3.3#TRPBF | LT3063IMS8E-5#PBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN POS ADJ 200MA 8MSOP | IC REG LINEAR 3.3V 200MA 8MSOP | IC REG LINEAR 3.3V 200MA 8MSOP | IC REG LINEAR 5V 200MA 8MSOP |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
