LT5503EFE#PBF

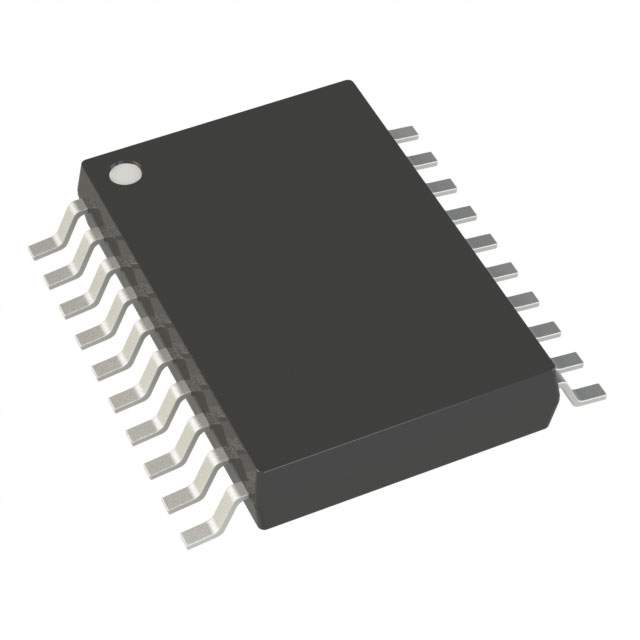

lmages are for reference only.LT5503EFE#PBF
RF MODULATOR 1.7-2.7GHZ 20TSSOP
Datasheet20-TSSOP (0.173", 4.40mm Width) Exposed Pad
13,278 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Modulator IC 1.7GHz ~ 2.7GHz 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
LT5503EFE#PBF
| Category | RF and Wireless - RF Modulators - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Modulator/Mixer |
| LO Frequency | 1.4GHz ~ 2.4GHz |
| RF Frequency | 1.7GHz ~ 2.7GHz |
| P1dB | -15dBm |
| Noise Floor | -152dBm/Hz |
| Output Power | 12.7dBm |
| Current - Supply | 38 mA |
| Voltage - Supply | 1.8V ~ 5.25V |
| Test Frequency | 2.4GHz |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Base Product Number | LT5503 |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT5503EFE#TRPBF | LT5568EUF#TRPBF | LT5558EUF#PBF | LT5572EUF#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RF MODULATOR 1.7-2.7GHZ 20TSSOP | RF MODULATR 700MHZ-1.05GHZ 16QFN | RF MODULATOR 600MHZ-1.1GHZ 16QFN | RF MODULATOR 1.5GHZ-2.5GHZ 16QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
