LT5558EUF#PBF

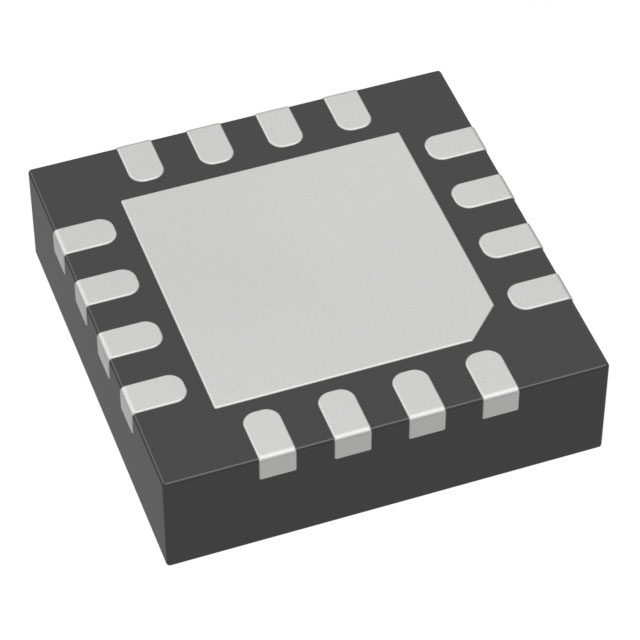

lmages are for reference only.LT5558EUF#PBF
RF MODULATOR 600MHZ-1.1GHZ 16QFN
Datasheet16-WQFN Exposed Pad
54,336 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Modulator IC 600MHz ~ 1.1GHz 16-WQFN Exposed Pad
LT5558EUF#PBF
| Category | RF and Wireless - RF Modulators - |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Function | Modulator |
| LO Frequency | 600MHz ~ 1.1GHz |
| RF Frequency | 600MHz ~ 1.1GHz |
| P1dB | 7.8dBm |
| Noise Floor | -158dBm/Hz |
| Output Power | -1.1dBm |
| Current - Supply | 108 mA |
| Voltage - Supply | 4.5V ~ 5.25V |
| Test Frequency | 900MHz |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Base Product Number | LT5558 |
| Product Attribute |  |
 |
 |
 |
| Part Number | LT5558EUF#TRPBF | LT5568EUF#TRPBF | LT5503EFE#PBF | LT5572EUF#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

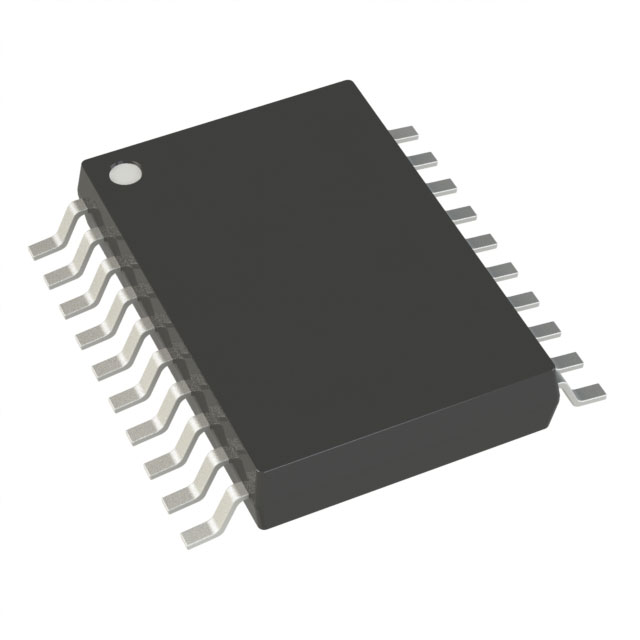

| Description | RF MODULATOR 600MHZ-1.1GHZ 16QFN | RF MODULATR 700MHZ-1.05GHZ 16QFN | RF MODULATOR 1.7-2.7GHZ 20TSSOP | RF MODULATOR 1.5GHZ-2.5GHZ 16QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
