M15733/61-0012
lmages are for reference only.M15733/61-0012
FILTER LC(PI) 0.025UF CHASSIS
DatasheetAxial, Bushing, 1 Turret Lead
64,705 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 0.025µF 10 A Axial, Bushing, 1 Turret Lead
M15733/61-0012
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 65dB @ 1GHz ~ 10GHz |
| Resistance - Channel (Ohms) | - |
| Current | 10 A |
| Values | C = 0.025µF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Voltage - Rated | 100V |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing, 1 Turret Lead |
| Size / Dimension | 0.235" Dia x 0.437" L (5.97mm x 11.11mm) |
| Height | - |
| Number of Channels | 1 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

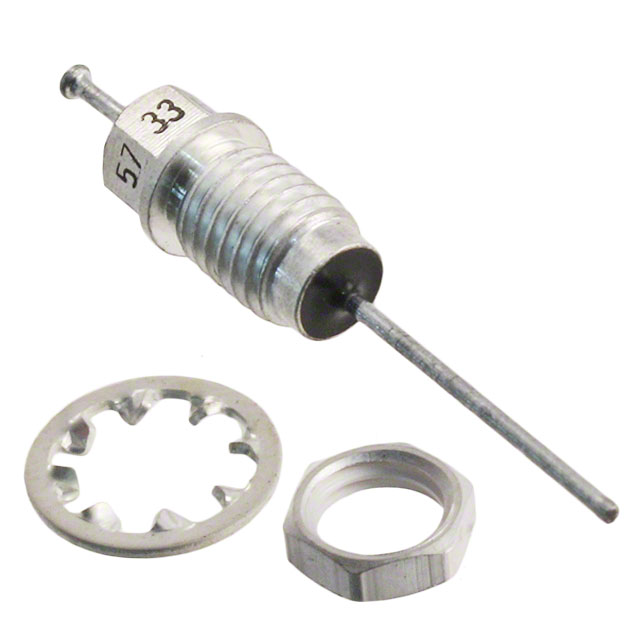

| Part Number | M15733/61-0010 | M15733/61-0010 | M15733/61-0011 | M15733/61-0011 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FILTER LC(PI) 5000PF CHASSIS | FILTER LC(PI) 5000PF CHASSIS | FILTER LC(PI) 5000PF CHASSIS | FILTER LC(PI) 5000PF CHASSIS |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
